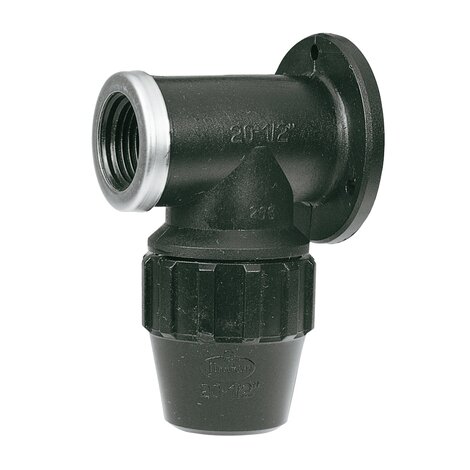

Threaded wall plate elbow with metal refinforcement
Threaded wall plate elbow with metal refinforcement
| Reference | tooltipImage | characteristics | Box units | measurement | A | B | C | D | Size | r |
|---|---|---|---|---|---|---|---|---|---|---|
| 055179 | - | N AENOR | 50 | 20-1/2" | 92 | 41 | 20.8 | 53.4 | 20-1/2” | 1/2” |
| 055180 | - | N AENOR | 50 | 25-3/4" | 104.3 | 47.8 | 25.6 | 58.6 | 25-3/4” | 3/4” |
| 055181 | - | N AENOR | 25 | 32-1" | 127 | 58 | 33 | 72 | 32-1” | 1” |
| 055182 | - | N AENOR | 25 | 40-1 1/4" | 160 | 69.5 | 41.4 | 86.4 | 40-11/4” | 1 1/4” |
| 055228 | - | - | 50 | 16-1/2" | 84 | 33.5 | 17 | 42.5 | 16-1/2” | 1/2” |
| 755179 | - | - | 25 | 20-1/2" | - | - | - | - | - | - |
| 755180 | - | - | 25 | 25-3/4" | - | - | - | - | - | - |
| 755181 | - | - | 10 | 32-1" | - | - | - | - | - | - |
