TRBM PN10 SDR 11 - S 5 - Reducer

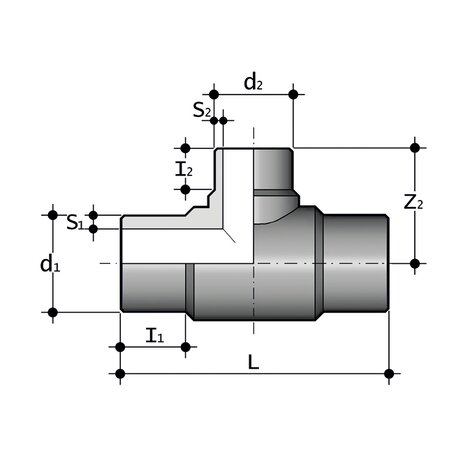

90° reducing Tee, short spigot for butt welding PN10 SDR 11 - S 5.
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
| Reference | tooltipImage | Other description | system | Category | family | d1 | d2 | i[5:1] | I[5:2] | L | s[5:1] | s[5:2] | Z2 | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TRBM11063050 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *63 | 50 | 63 | 56 | 220 | 4,6 | 4,6 | 103 | 292 |
| TRBM11075032 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *75 | 32 | 70 | 46 | 256 | 6,8 | 2,9 | 103 | 498 |
| TRBM11075050 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *75 | 50 | 75 | 56 | 265 | 4,6 | 4,6 | 113 | 530 |
| TRBM11075063 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *75 | 63 | 72 | 63 | 260 | 5,8 | 5,8 | 117 | 537 |
| TRBM11090032 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 90 | 32 | 53 | 23 | 203 | 8,2 | 2,9 | 85 | 562 |
| TRBM11090050 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 90 | 32 | 53 | 23 | 203 | 8,2 | 2,9 | 85 | 562 |
| TRBM11090063 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *90 | 63 | 82 | 66 | 282 | 8,2 | 5,8 | 127 | 739 |
| TRBM11090075 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *90 | 75 | 73 | 68 | 280 | 8,2 | 6,8 | 138 | 796 |
| TRBM11110032 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 110 | 32 | 66 | 22 | 234 | 10 | 2,9 | 91 | 906 |
| TRBM11110050 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 110 | 50 | 70 | 27 | 244 | 10 | 4,6 | 103 | 945 |
| TRBM11110063 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *110 | 63 | 88 | 68 | 328 | 10 | 5,8 | 149 | 1240 |
| TRBM11110075 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *110 | 75 | 86 | 70 | 320 | 10 | 6,8 | 151 | 1180 |
| TRBM11110090 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *110 | 90 | 86 | 79 | 320 | 10 | 8,2 | 158 | 1261 |
| TRBM11125063 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 125 | 63 | 76 | 31 | 280 | 11,4 | 5,8 | 112 | 1400 |
| TRBM11125090 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *125 | 90 | 112 | 92 | 340 | 11,4 | 8,2 | 170 | 1640 |
| TRBM11125110 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *125 | 110 | 90 | 83 | 341 | 11,4 | 10 | 170 | 1850 |
| TRBM11140063 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 140 | 63 | 87 | 32 | 302 | 12,7 | 5,8 | 120 | 1800 |
| TRBM11140075 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 140 | 75 | 54 | 35 | 305 | 12,7 | 6,8 | 130 | 1920 |
| TRBM11140090 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 140 | 90 | 88 | 42 | 305 | 12,7 | 8,2 | 130 | 1840 |
| TRBM11140110 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 140 | 110 | 50 | 44 | 291 | 12,7 | 10 | 140 | 2180 |
| TRBM11160063 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *160 | 63 | 100 | 67 | 347 | 14,6 | 5,8 | 175 | 2560 |
| TRBM11160075 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *160 | 75 | 98 | 74 | 343 | 14,6 | 6,8 | 180 | 2620 |
| TRBM11160090 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *160 | 90 | 104 | 83 | 412 | 14,6 | 8,2 | 190 | 2620 |
| TRBM11160110 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *160 | 110 | 104 | 89 | 414 | 14,6 | 10 | 200 | 3160 |
| TRBM11160125 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 160 | 125 | 62 | 52 | 335 | 14,6 | 11,4 | 158 | 2720 |
| TRBM11180063 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 180 | 63 | 134 | 32 | 367 | 16,4 | 5,8 | 144 | 3040 |
| TRBM11180075 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 180 | 75 | 123 | 31 | 366 | 16,4 | 6,8 | 148 | 3100 |
| TRBM11180090 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *180 | 90 | 138 | 97 | 427 | 16,4 | 8,2 | 200 | 4240 |
| TRBM11180110 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *180 | 110 | 148 | 101 | 464 | 16,4 | 10 | 225 | 4600 |
| TRBM11180125 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 180 | 125 | 100 | 52 | 366 | 16,4 | 11,4 | 166 | 3280 |
| TRBM11200063 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *200 | 63 | 122 | 63 | 500 | 18,2 | 5,8 | 190 | 6940 |
| TRBM11200090 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *200 | 90 | 122 | 79 | 498 | 18,2 | 5,1 | 207 | 6860 |
| TRBM11200110 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *200 | 110 | 122 | 82 | 500 | 18,2 | 6,3 | 215 | 6980 |
| TRBM11200125 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *200 | 125 | 115 | 43 | 388 | 18,2 | 11,4 | 165 | 6920 |
| TRBM11200160 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *200 | 160 | 122 | 98 | 500 | 18,2 | 9,1 | 234 | 8340 |
| TRBM11225075 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *225 | 75 | 120 | 70 | 555 | 20,5 | 6,8 | 227 | 6620 |
| TRBM11225090 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *225 | 90 | 129 | 82 | 556 | 20.5 | 8,2 | 228 | 6660 |
| TRBM11225110 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *225 | 110 | 130 | 86 | 556 | 20,5 | 10 | 238 | 6660 |
| TRBM11225125 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 225 | 125 | 135 | 40 | 456 | 20,5 | 11,4 | 178 | 6120 |
| TRBM11225180 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | 225 | 180 | 135 | 135 | 558 | 20,5 | 16,4 | 280 | 9800 |
| TRBM11250110 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *225 | 110 | 135 | 38 | 450 | 22,7 | 10 | 197 | 12460 |
| TRBM11250160 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *250 | 160 | 110 | 58 | 458 | 22,7 | 14,6 | 213 | 12960 |
| TRBM11315110 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *315 | 110 | 150 | 82 | 695 | 28,6 | 10 | 277 | 15680 |
| TRBM11315160 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *315 | 160 | 150 | 102 | 695 | 28,6 | 14,6 | 290 | 17020 |
| TRBM11315225 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *315 | 225 | 170 | 145 | 650 | 28,6 | 20,5 | 335 | 20580 |
| TRBM11315250 | - | *long spigot all resale products | PP-H system | Pressure Fittings | ISO-UNI Fittings Butt Welding | *315 | 250 | 150 | 130 | 695 | 28,6 | 22,7 | 325 | 21840 |
*long spigot
all resale products
