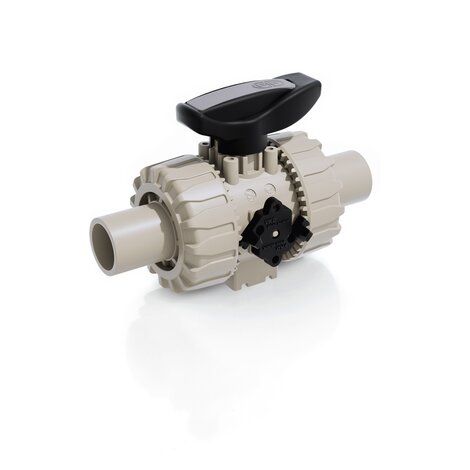

VKDBM - DUAL BLOCK® 2-way ball valve DN 10:50
DUAL BLOCK® 2-way ball valve with long spigot male ends in PP-H SDR 11 for butt welding or electrofusion (CVDM).
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications.
Main features:
- Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
- Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
- Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
- DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
- Machined high surface finish ball that guarantees a smooth operation and increased reliability
EPDM

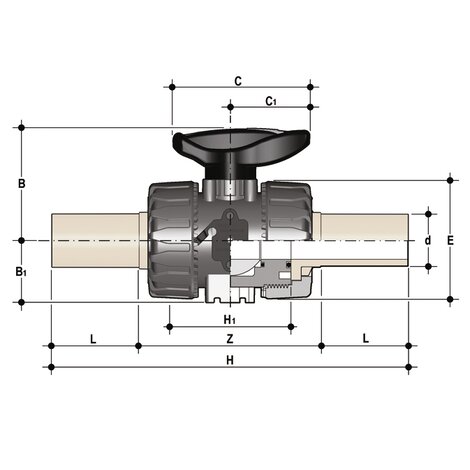

| Reference | tooltipImage | system | Category | family | series | d | DN | PN | B | B1 | C | C[5:1] | E | H | H1 | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDBM020E | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
| VKDBM025E | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
| VKDBM032E | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
| VKDBM040E | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
| VKDBM050E | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
| VKDBM063E | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
EPDM
| Reference | tooltipImage | system | Category | family | series | d | DN | PN | B | B1 | C | C[5:1] | E | H | H1 | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDBM020E0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
| VKDBM025E0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
| VKDBM032E0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
| VKDBM040E0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
| VKDBM050E0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
| VKDBM063E0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
EPDM
| Reference | tooltipImage | system | Category | family | series | d | DN | PN | B | B1 | C | C[5:1] | E | H | H1 | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDBM020E0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
| VKDBM025E0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
| VKDBM032E0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
| VKDBM040E0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
| VKDBM050E0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
| VKDBM063E0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
FKM
| Reference | tooltipImage | system | Category | family | series | d | DN | PN | B | B1 | C | C[5:1] | E | H | H1 | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDBM020F | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
| VKDBM025F | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
| VKDBM032F | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
| VKDBM040F | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
| VKDBM050F | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
| VKDBM063F | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
FKM
| Reference | tooltipImage | system | Category | family | series | d | DN | PN | B | B1 | C | C[5:1] | E | H | H1 | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDBM020F0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
| VKDBM025F0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
| VKDBM032F0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
| VKDBM040F0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
| VKDBM050F0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
| VKDBM063F0LF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
FKM
| Reference | tooltipImage | system | Category | family | series | d | DN | PN | B | B1 | C | C[5:1] | E | H | H1 | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDBM020F0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
| VKDBM025F0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
| VKDBM032F0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
| VKDBM040F0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
| VKDBM050F0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
| VKDBM063F0SF | - | PP-H system | Manual valves | Ball valves | VKD DN 10÷50 | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
- Connection system for solvent weld, threaded and flanged joints
- Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
- Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
- PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
- Option of dismounting downstream pipes with the valve in the closed position
- Floating full bore ball with high surface finish
- Integrated bracket for valve anchoring
- Ball seat carriers can be adjusted using the Easytorque adjustment kit
- Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
