VKDOF/VKDOAF - DUAL BLOCK® 2-way ball valve 65:100

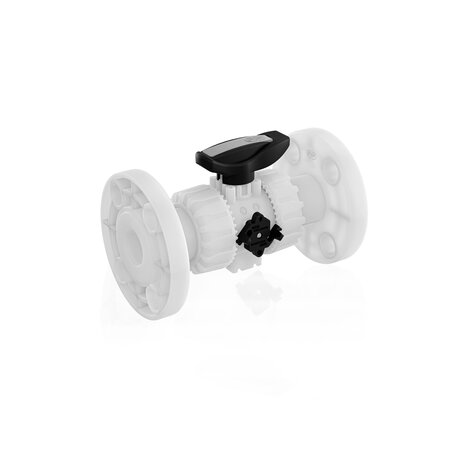

VKDOF: DUAL BLOCK® 2-way ball valve with fixed flanges, drilled EN/ISO/DIN PN10/16. Face to face according to EN 558-1.
VDKOAF: DUAL BLOCK® ball valve with ANSI B16.5 cl.150#FF fixed flanges.

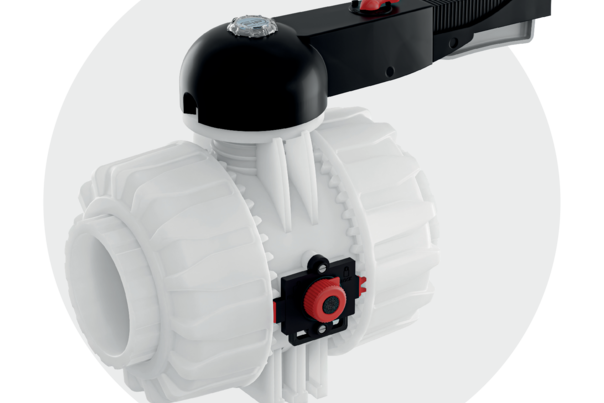

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications. This valve is also equipped with a customisable Labelling System.
Main features:
- HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock
- Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs
- DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
- Double stem with double O-Rings for ball centring and operating torque reduction
- Machined high surface finish ball that guarantees a smooth operation and increased reliability
| Reference | system | Category | family | series | d | DN | PN | B | B1 | C | C1 | F | f | H | H1 | Sp | U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VKDOF075F | PVDF system | Manual valves | Ball valves | VKD DN 65÷100 | 75 | 65 | 16 | 164 | 87 | 225 | 175 | 145 | 17 | 290 | 133 | 21 | 4 | 8588 |
| VKDOF090F | PVDF system | Manual valves | Ball valves | VKD DN 65÷100 | 90 | 80 | 16 | 177 | 105 | 327 | 272 | 160 | 17 | 310 | 149 | 21,5 | 8 | 12122 |
| VKDOF110F | PVDF system | Manual valves | Ball valves | VKD DN 65÷100 | 110 | 100 | 16 | 195 | 129 | 385 | 330 | 180 | 17 | 350 | 167 | 21,5 | 8 | 17949 |
- Connection system for solvent weld, threaded and flanged joints
- Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects
- Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
- PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
- Option of dismounting downstream pipes with the valve in the closed position
- Full bore ball with high surface finish
- Integrated bracket for valve anchoring
- Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
- STAINLESS steel co-moulded stem, with square section as per ISO 5211
- Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
