VKRIM - DUAL BLOCK® regulating ball valve DN 10:50

DUAL BLOCK® regulating ball valve with female ends for socket welding, metric series.

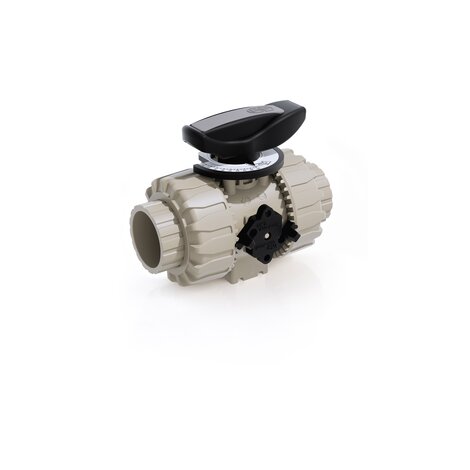

The VKR DUAL BLOCK® valve combines high reliability and safety aspects typical of VKD full bore ball valves with the new flow adjustment function with typical linear curve that meets the most stringent needs typical of industrial applications.

Main features:

  • HIPVC ergonomic multifunctional handle with position indicator and tool to adjust the ball seat carrier
  • Flow direction and opening angle indication plate with graduated scale with 5° detail for clear and accurate readings
  • 90° operating angle that permits the use of standard quarter turn actuators
  • The patented ball design provides linear flow adjustment throughout its range of operation even when the valve is open just a few degrees and guarantees minimum pressure drops
  • Patented DUAL BLOCK® system: prevents union nuts from loosening even under extreme operating conditions: e.g. vibration or thermal expansion
Go back Data sheet
Valvola di regolazione a sfera DUAL BLOCK® VKRIM DN 10:50 in PP-H
VKRIM - DUAL BLOCK® regulating ball valve DN 10:50
Valvola di regolazione a sfera DUAL BLOCK® VKRIM DN 10:50 in PP-H
VKRIM - DUAL BLOCK® regulating ball valve DN 10:50

EPDM

Reference system Category family series d DN PN B B1 C C1 E H H1 Z g
VKRIM016E PP-H system Manual valves Ball valves VKR DN 10÷50 16 10 10 54 29 67 40 54 102 65 74,5 150
VKRIM020E PP-H system Manual valves Ball valves VKR DN 10÷50 20 15 10 54 29 67 40 54 102 65 73 145
VKRIM025E PP-H system Manual valves Ball valves VKR DN 10÷50 25 20 10 65 34,5 85 49 65 114 70 82 218
VKRIM032E PP-H system Manual valves Ball valves VKR DN 10÷50 32 25 10 69,5 39 85 49 73 126 78 90 298
VKRIM040E PP-H system Manual valves Ball valves VKR DN 10÷50 40 32 10 82,5 46 108 64 86 141 88 100 480
VKRIM050E PP-H system Manual valves Ball valves VKR DN 10÷50 50 40 10 89 52 108 64 98 164 93 117 682
VKRIM063E PP-H system Manual valves Ball valves VKR DN 10÷50 63 50 10 108 62 134 76 122 199 111 144 1166

EPDM

Reference system Category family series d DN PN B B1 C C1 E H H1 Z g
VKRIM016E0LF PP-H system Manual valves Ball valves VKR DN 10÷50 16 10 10 54 29 67 40 54 102 65 74,5 150
VKRIM020E0LF PP-H system Manual valves Ball valves VKR DN 10÷50 20 15 10 54 29 67 40 54 102 65 73 145
VKRIM025E0LF PP-H system Manual valves Ball valves VKR DN 10÷50 25 20 10 65 34,5 85 49 65 114 70 82 218
VKRIM032E0LF PP-H system Manual valves Ball valves VKR DN 10÷50 32 25 10 69,5 39 85 49 73 126 78 90 298
VKRIM040E0LF PP-H system Manual valves Ball valves VKR DN 10÷50 40 32 10 82,5 46 108 64 86 141 88 100 480
VKRIM050E0LF PP-H system Manual valves Ball valves VKR DN 10÷50 50 40 10 89 52 108 64 98 164 93 117 682
VKRIM063E0LF PP-H system Manual valves Ball valves VKR DN 10÷50 63 50 10 108 62 134 76 122 199 111 144 1166

EPDM

Reference system Category family series d DN PN B B1 C C1 E H H1 Z g
VKRIM016E0SF PP-H system Manual valves Ball valves VKR DN 10÷50 16 10 10 54 29 67 40 54 102 65 74,5 150
VKRIM020E0SF PP-H system Manual valves Ball valves VKR DN 10÷50 20 15 10 54 29 67 40 54 102 65 73 145
VKRIM025E0SF PP-H system Manual valves Ball valves VKR DN 10÷50 25 20 10 65 34,5 85 49 65 114 70 82 218
VKRIM032E0SF PP-H system Manual valves Ball valves VKR DN 10÷50 32 25 10 69,5 39 85 49 73 126 78 90 298
VKRIM040E0SF PP-H system Manual valves Ball valves VKR DN 10÷50 40 32 10 82,5 46 108 64 86 141 88 100 480
VKRIM050E0SF PP-H system Manual valves Ball valves VKR DN 10÷50 50 40 10 89 52 108 64 98 164 93 117 682
VKRIM063E0SF PP-H system Manual valves Ball valves VKR DN 10÷50 63 50 10 108 62 134 76 122 199 111 144 1166

FKM

Reference system Category family series d DN PN B B1 C C1 E H H1 Z g
VKRIM016F PP-H system Manual valves Ball valves VKR DN 10÷50 16 10 10 54 29 67 40 54 102 65 74,5 150
VKRIM020F PP-H system Manual valves Ball valves VKR DN 10÷50 20 15 10 54 29 67 40 54 102 65 73 145
VKRIM025F PP-H system Manual valves Ball valves VKR DN 10÷50 25 20 10 65 34,5 85 49 65 114 70 82 218
VKRIM032F PP-H system Manual valves Ball valves VKR DN 10÷50 32 25 10 69,5 39 85 49 73 126 78 90 298
VKRIM040F PP-H system Manual valves Ball valves VKR DN 10÷50 40 32 10 82,5 46 108 64 86 141 88 100 480
VKRIM050F PP-H system Manual valves Ball valves VKR DN 10÷50 50 40 10 89 52 108 64 98 164 93 117 682
VKRIM063F PP-H system Manual valves Ball valves VKR DN 10÷50 63 50 10 108 62 134 76 122 199 111 144 1166

FKM

Reference system Category family series d DN PN B B1 C C1 E H H1 Z g
VKRIM016F0LF PP-H system Manual valves Ball valves VKR DN 10÷50 16 10 10 54 29 67 40 54 102 65 74,5 150
VKRIM020F0LF PP-H system Manual valves Ball valves VKR DN 10÷50 20 15 10 54 29 67 40 54 102 65 73 145
VKRIM025F0LF PP-H system Manual valves Ball valves VKR DN 10÷50 25 20 10 65 34,5 85 49 65 114 70 82 218
VKRIM032F0LF PP-H system Manual valves Ball valves VKR DN 10÷50 32 25 10 69,5 39 85 49 73 126 78 90 298
VKRIM040F0LF PP-H system Manual valves Ball valves VKR DN 10÷50 40 32 10 82,5 46 108 64 86 141 88 100 480
VKRIM050F0LF PP-H system Manual valves Ball valves VKR DN 10÷50 50 40 10 89 52 108 64 98 164 93 117 682
VKRIM063F0LF PP-H system Manual valves Ball valves VKR DN 10÷50 63 50 10 108 62 134 76 122 199 111 144 1166

FKM

Reference system Category family series d DN PN B B1 C C1 E H H1 Z g
VKRIM016F0SF PP-H system Manual valves Ball valves VKR DN 10÷50 16 10 10 54 29 67 40 54 102 65 74,5 150
VKRIM020F0SF PP-H system Manual valves Ball valves VKR DN 10÷50 20 15 10 54 29 67 40 54 102 65 73 145
VKRIM025F0SF PP-H system Manual valves Ball valves VKR DN 10÷50 25 20 10 65 34,5 85 49 65 114 70 82 218
VKRIM032F0SF PP-H system Manual valves Ball valves VKR DN 10÷50 32 25 10 69,5 39 85 49 73 126 78 90 298
VKRIM040F0SF PP-H system Manual valves Ball valves VKR DN 10÷50 40 32 10 82,5 46 108 64 86 141 88 100 480
VKRIM050F0SF PP-H system Manual valves Ball valves VKR DN 10÷50 50 40 10 89 52 108 64 98 164 93 117 682
VKRIM063F0SF PP-H system Manual valves Ball valves VKR DN 10÷50 63 50 10 108 62 134 76 122 199 111 144 1166
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double connection key to ball
  • Integrated bracket for valve anchoring
  • Ball seat carrier can be adjusted using the Easytorque adjustment kit
  • Actuation option: version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position
  • Valve suitable for carrying fluids that are clean and free of suspended particles

Downloads

VKR DN 10:50 PP-H Technical Catalogue
en get_app
3.9 MB, PDF
