YS SDR 11

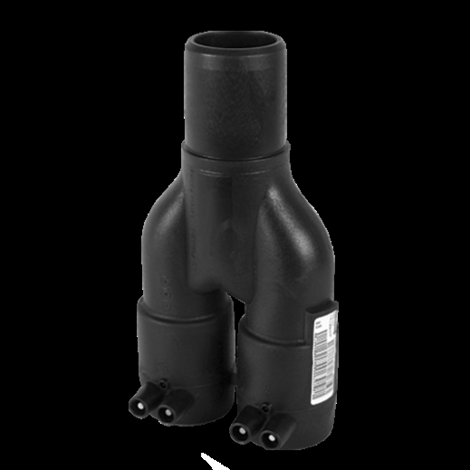

Y-piece with spigot, SDR 11

Y-piece YS SDR 11 with spigot

  • Gas and water
  • Working pressure: MOP (gas) 10 bar, PFA (water) 16 bar
  • Material: PE 100
  • Safety technology
  • DVGW test mark: DV-8601AU2248
Go back Data sheet
Y-piece with spigot, SDR 11
Y-piece with spigot, SDR 11
Y-piece with spigot, SDR 11
Y-piece with spigot, SDR 11

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

Reference d BX PU Weight kg
640035 32-32-40 28 504 0,200
640037 40-40-50 18 324 0,320

Downloads

Y-piece with spigot, SDR 11
de get_app en get_app
2 MB, ZIP
CAD data
Y-piece with spigot, SDR 11

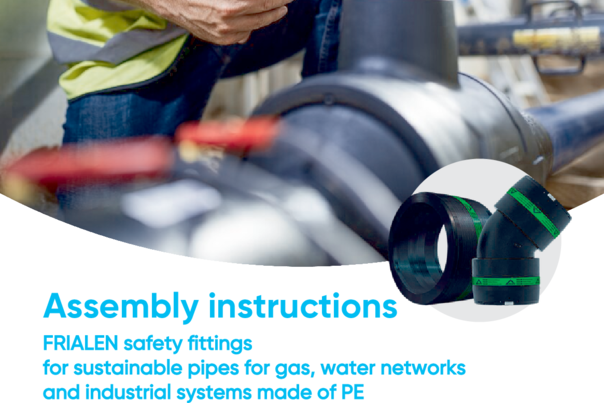

FRIALEN assembly instruction for house service and supply pipings
de get_app en get_app
19.4 MB, PDF
Assembly instruction
FRIALEN assembly instruction for house service and supply pipings
