BIGF
Εξαρτήματα Αυτογενής Συγκόλλησης-Ρακόρ

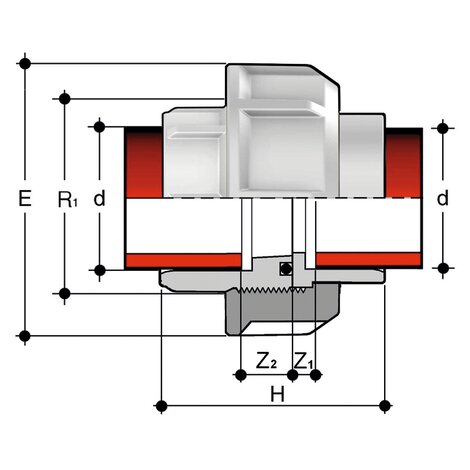

Union for socket welding
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Κωδικός προϊόντος | tooltipImage | d | R[5:1] | PN | E | H | Z1 | Z2 | g |
|---|---|---|---|---|---|---|---|---|---|
| BIGF020F | - | 20 | 1" | 16 | 47 | 45,5 | 12 | 5,5 | 59 |
| BIGF025F | - | 25 | 1"1/4 | 16 | 58 | 49,5 | 12 | 5,5 | 99 |
| BIGF032F | - | 32 | 1"1/2 | 16 | 65 | 53,5 | 12 | 5,5 | 141 |
| BIGF040F | - | 40 | 2" | 16 | 78 | 59,5 | 14 | 5,5 | 218 |
| BIGF050F | - | 50 | 2"1/4 | 16 | 85 | 67,5 | 16 | 5,5 | 290 |
| BIGF063F | - | 63 | 2"3/4 | 16 | 103 | 79,5 | 20 | 5,5 | 476 |
