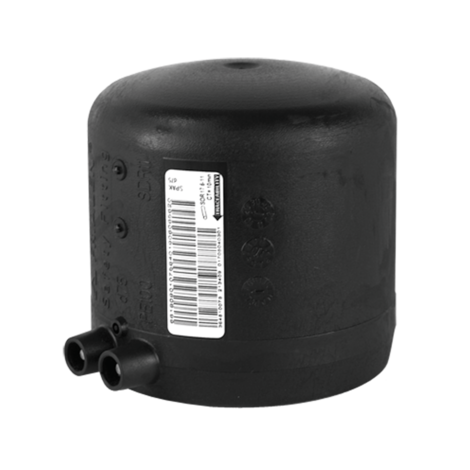

Cap for Balloon Shut off Saddles
With exposed heating coil for optimal heat transfer, large insertion depth, extra wide fusion zone plus cold zones at the end to prevent the flow of molten material.
When using hydrogen, it is mandatory to use the cap SPAK with the Balloon Shut off Saddles SPA.
With exposed heating coil for optimal heat transfer, large insertion depth, extra wide fusion zone plus cold zones at the end to prevent the flow of molten material.
When using hydrogen, it is mandatory to use the cap SPAK with the Balloon Shut off Saddles SPA.
PE 100 SDR 11
Maximum working pressure 16 bar (water)/10 bar (gas)
| Κωδικός προϊόντος | d | BX | PU | D | L | t | h | B | Weight kg |
|---|---|---|---|---|---|---|---|---|---|
| 612311 | 75 | 20 | 640 | 99 | 99 | 70 | 31 | 110 | 0,320 |
FRIALEN-Safety Fittings can be fused to pipes of SDR stages 11 to 17.6. Other SDR-stages on request. Please observe the marking directly at the product, which is mandatory. DVGW-Registration No.: DV-8606AU2249
Areas of Application
FRIALEN-Cap SPAK is used for final sealing of the drill socket (dome) of a Shut off Saddle SPA ≥ d 90 or SPA-TL. Also suitable as End Cap MV for d 75.
Assembly Instructions
The fusion of the Dome of a FRIALEN-Shut off Saddle with the FRIALEN-Cap SPAK takes place by FRIALEN-fusing – leakproof and longitudinally strong.
The dome has to be prepared according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d225”). This involves removing the oxide skin and cleaning the pipe ends.
Good reasons for using the FRIALEN-Cap for Shut off Saddle SPAK:
Large insertion depth for ease of pipe guiding
Extra wide fusion zones
Maximum stability through great wall thickness
Cold zones at the end to prevent the flow of molten material
Exposed heating coils for optimal heat transfer to the pipe
Small annular gap for build-up of optimum joining pressure in the fusion zone
Contacts safe to touch
Fusion indicator for visual fusion control
Durable batch marking
Individually wrapped for dirt protection
Additional barcode for tracing back the fitting (Traceability-Coding)
