CFV
Εξαρτήματα Βιδωτά

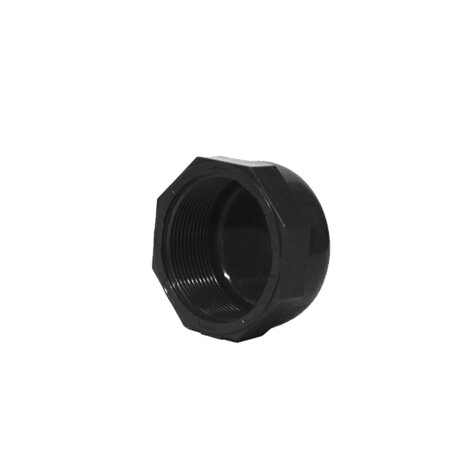

End cap with BSP female thread
Series of fittings for pipes conveying fluids under pressure with threaded joints.

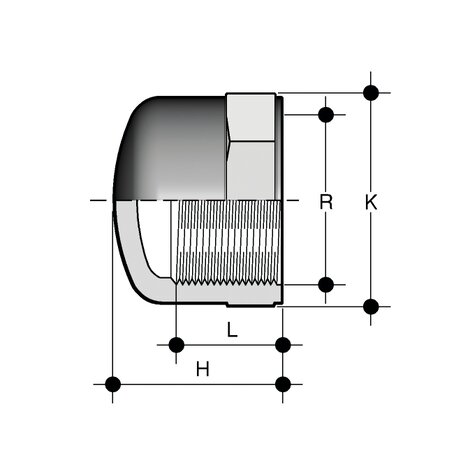

| Κωδικός προϊόντος | tooltipImage | R | PN | H | K | L | g |
|---|---|---|---|---|---|---|---|
| 1RCA216000 | - | 3/8" | 16 | 19 | 23 | 11,4 | 6 |
| CFV012 | - | 1/2" | 16 | 25 | 28 | 15 | 10 |
| CFV034 | - | 3/4" | 16 | 27 | 34 | 16,3 | 15 |
| CFV100 | - | 1" | 16 | 31 | 42 | 19,1 | 27 |
| CFV114 | - | 1"1/4 | 16 | 35 | 51 | 21,4 | 40 |
| CFV112 | - | 1"1/2 | 16 | 36 | 58 | 21,4 | 53 |
| CFV200 | - | 2" | 16 | 42 | 71 | 25,7 | 85 |
| CFV300 | - | 3" | 16 | 55 | 109 | 33,3 | 310 |
