CIC
Εξαρτήματα κολλητά-Τάπες

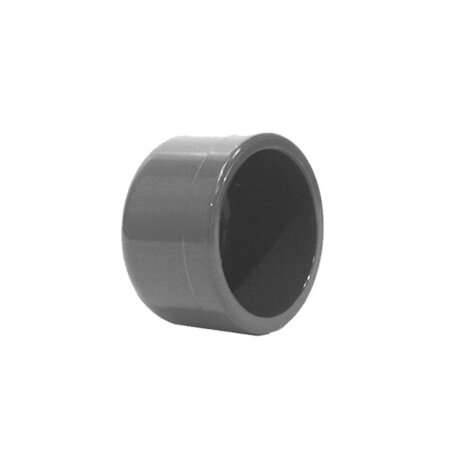

End cap with solvent weld socket
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Κωδικός προϊόντος | d | PN | E | H | L | g |
|---|---|---|---|---|---|---|
| CIC020 | 20 | 16 | 28 | 23 | 16 | 9 |
| CIC025 | 25 | 16 | 34 | 27 | 19 | 16 |
| CIC032 | 32 | 16 | 41 | 31 | 22 | 25 |
| CIC040 | 40 | 16 | 51 | 36 | 26 | 42 |
| CIC050 | 50 | 16 | 62 | 43 | 31 | 64 |
| CIC063 | 63 | 16 | 77 | 51 | 38 | 115 |
| CIC075 | 75 | 16 | 91 | 59 | 44 | 205 |
| CIC090 | 90 | 16 | 110 | 69 | 51 | 260 |
| CIC110 | 110 | 16 | 132 | 83 | 61 | 555 |
| CIC160 | 160 | 16 | 192 | 128 | 86 | 2060 |
