HFV
Εξαρτήματα Βιδωτά με Μούφα

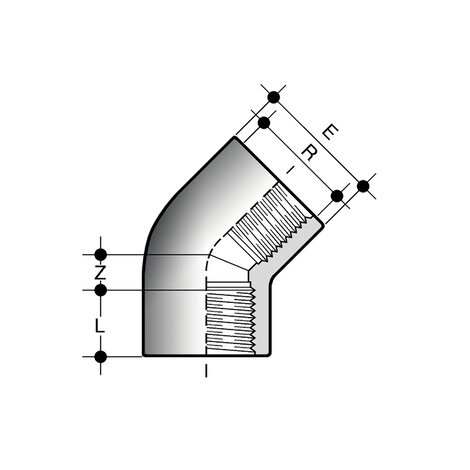

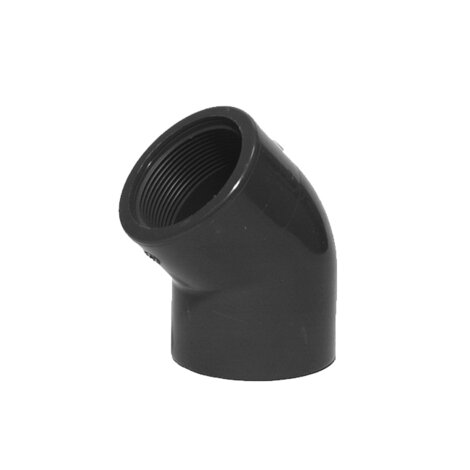

45Β° elbow with BSP threaded female ends
Series of fittings for pipes conveying fluids under pressure with threaded joints.
| Κωδικός προϊόντος | tooltipImage | R | PN | E | L | Z | g |
|---|---|---|---|---|---|---|---|
| HFV012 | - | 1/2" | 16 | 28 | 15 | 6,5 | 18 |
| HFV034 | - | 3/4" | 16 | 33 | 16,3 | 8 | 24 |
| HFV100 | - | 1" | 16 | 41 | 19,1 | 10,5 | 45 |
| HFV114 | - | 1"1/4 | 16 | 50 | 21,4 | 15 | 68 |
| HFV112 | - | 1"1/2 | 16 | 64 | 21,4 | 21 | 154 |
| HFV200 | - | 2" | 16 | 76 | 25,7 | 26 | 255 |
| HFV212 | - | 2"1/2 | 16 | 90 | 30,2 | 31 | 345 |
| HFV300 | - | 3" | 16 | 107 | 33,3 | 39 | 625 |
