HLV
Εξαρτήματα σύμφωνα με Αγγλικά Πρότυπα με Μούφα

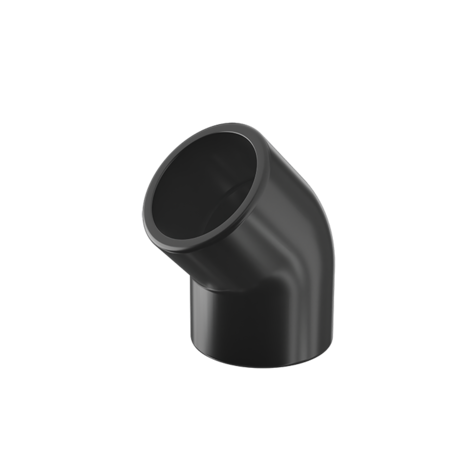

45Β° elbow with solvent weld sockets
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.

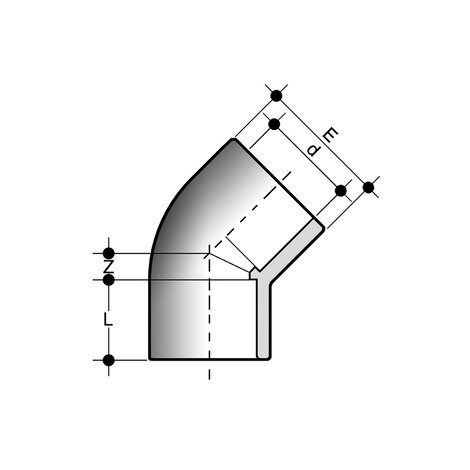

| Κωδικός προϊόντος | tooltipImage | d | PN | E | L | Z | g | Class |
|---|---|---|---|---|---|---|---|---|
| HLV012 | - | 1/2" | 15 | 27 | 16,5 | 5 | 13 | E |
| HLV034 | - | 3/4" | 15 | 33 | 19,5 | 5,5 | 20 | E |
| HLV100 | - | 1" | 15 | 41 | 22,5 | 7 | 45 | E |
| HLV114 | - | 1"1/4 | 15 | 50 | 26 | 10,5 | 85 | D |
| HLV112 | - | 1"1/2 | 15 | 61 | 31 | 11,5 | 155 | E |
| HLV200 | - | 2" | 15 | 76 | 38 | 14 | 291 | E |
| HIV075 | - | 2"1/2 | 15 | 90 | 44 | 17 | 315 | E |
| HLV300 | - | 3" | 15 | 107,5 | 51 | 21,5 | 565 | E |
| HLV400 | - | 4" | 15 | 131 | 61 | 26 | 740 | E |
