Μεταβατικά κομμάτια HD-PE/Steel with male thread

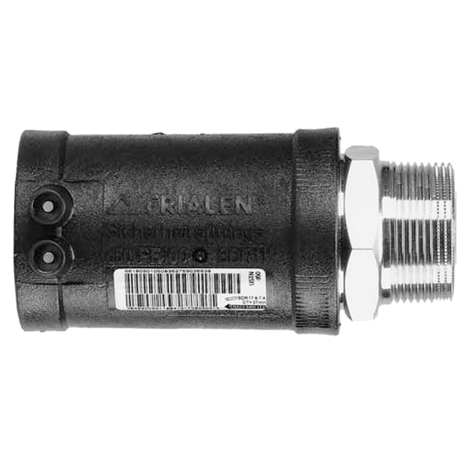

Compact transition fitting. HD-PE end with exposed heating coils for optimal heat transfer, large insertion depth, wide fusion zone plus cold zones at the end and in the transition area to prevent the flow of molten material for use without holding devices. Steel end permanently anchored in the HD-PE. Self sealing patented sealing geometry without elastomer seal. For use in gas systems.
Other thread sizes on request
Compact transition fitting. HD-PE end with exposed heating coils for optimal heat transfer, large insertion depth, wide fusion zone plus cold zones at the end and in the transition area to prevent the flow of molten material for use without holding devices. Steel end permanently anchored in the HD-PE. Self sealing patented sealing geometry without elastomer seal. For use in gas systems.
Other thread sizes on request
PE 100 SDR 11
Maximum working pressure 5 bar (gas)
| Κωδικός προϊόντος | d | BX | PU | D | R | L | t | z | h | B | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 612580 | 32 | 20 | 1080 | 47 | 1" | 119 | 42 | 77 | 24 | 61 | 0,345 |
| 612582 | 40 | 20 | 800 | 58 | 1 1/4" | 131 | 46 | 86 | 30 | 70 | 0,530 |
| 612584 | 50 | 15 | 600 | 70 | 1 1/2" | 146 | 53 | 93 | 30 | 80 | 0,700 |
| 612586 | 63 | 10 | 400 | 84 | 2" | 152 | 53 | 99 | 35 | 94 | 1,050 |
Other thread sizes on request
FRIALEN safety fittings can be fused to pipes SDR11 - SDR 17.6, minimum wall thickness s min ≥ 3 mm. Other SDR-stages on request. Please observe the marking directly at the product, which is mandatory. DVGW-Registration No. DV-7501AU2256
Areas of Application
The FRIALEN-Transition Fittings USTN are threaded joints as an adaptor from a metal pipe with threaded socket to a HD-PE pipe. Joint on the part of HD-PE by FRIALEN-Coupler.
Assembly Instructions
The threaded component must be held with a spanner to prevent it twisting in the HD-PE component. The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong. The installation of the steel and the HD-PE side has to be prepared according to the general installation instructions (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends.
Good reasons for using the FRIALEN USTN:
Compact construction
HD-PE side with exposed heating element for optimal heat transfer
Cold zones at the end to prevent the flow of molten material
No holding clamps required
Large insertion depth, extra wide fusion zones
Steel end permanently anchored in the HD-PE and will not distort
Self sealing patented sealing geometry without elastomer seal
Additional barcode for tracing back the fitting (Traceability-Coding)
