SIV
Εξαρτήματα Κολλητά με Μούφα

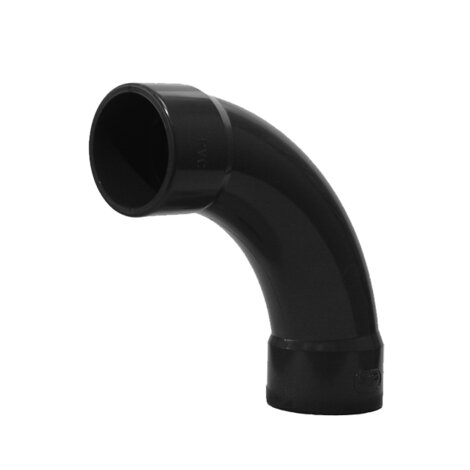

90Β° long radius bend (R=2d) with solvent weld sockets
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.

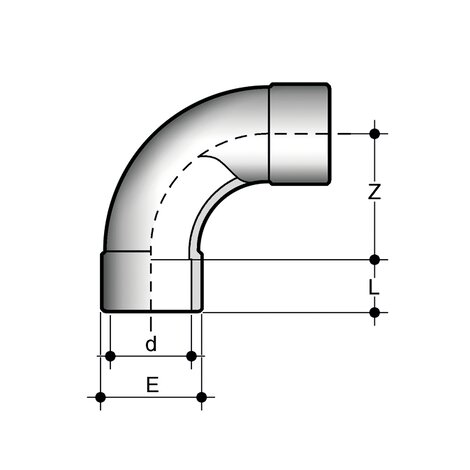

| Κωδικός προϊόντος | tooltipImage | product.detail.attribute. | d | PN | E | L | Z | g |
|---|---|---|---|---|---|---|---|---|
| SIV020 | - | IH | 20 | 16 | 27 | 16 | 40,5 | 35 |
| SIV025 | - | IH | 25 | 16 | 33 | 19 | 50 | 55 |
| SIV032 | - | IH | 32 | 16 | 41 | 22 | 65,5 | 100 |
| SIV040 | - | IH | 40 | 16 | 50 | 26 | 80,5 | 175 |
| SIV050 | - | IH | 50 | 16 | 61 | 31 | 100,5 | 280 |
| SIV063 | - | IH | 63 | 16 | 76 | 38 | 127 | 515 |
| SIV075 | - | I | 75 | 16 | 94 | 44 | 150 | 1000 |
| SIV090 | - | I | 90 | 16 | 113 | 51 | 180 | 1770 |
| SIV110 | - | I | 110 | 16 | 137 | 61 | 220 | 2800 |
| SIV160 | - | I | 160 | 16 | 189 | 86 | 207 | 5020 |
