TFV
Εξαρτήματα Βιδωτά με Μούφα

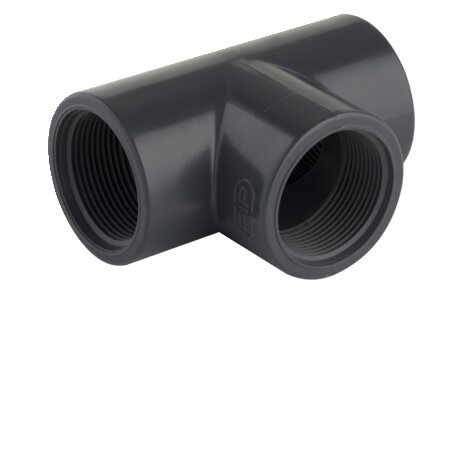

90Β° Tee with BSP threaded female ends
Series of fittings for pipes conveying fluids under pressure with threaded joints.

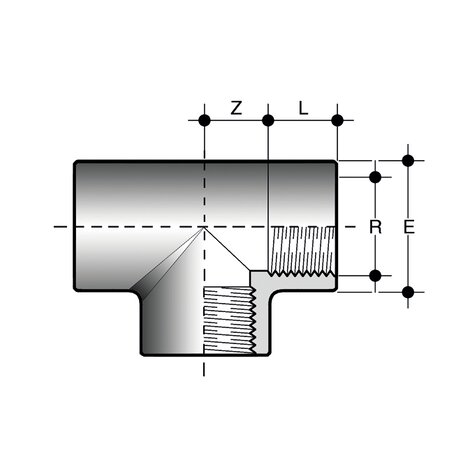

| Κωδικός προϊόντος | tooltipImage | R | PN | E | L | Z | g |
|---|---|---|---|---|---|---|---|
| TFV038 | - | 3/8" | 16 | 23,5 | 11,4 | 13 | 20 |
| TFV300 | - | 3" | 16 | 109 | 33,3 | 66 | 1135 |
| TFV212 | - | 2"1/2 | 16 | 91 | 30,2 | 55 | 640 |
| TFV200 | - | 2" | 16 | 76 | 25,7 | 46 | 465 |
| TFV112 | - | 1"1/2 | 16 | 61 | 21,4 | 37 | 260 |
| TFV114 | - | 1"1/4 | 16 | 50 | 21,4 | 27 | 117 |
| TFV100 | - | 1" | 16 | 43 | 19,1 | 21,5 | 92 |
| TFV034 | - | 3/4" | 16 | 35 | 16,3 | 17 | 52 |
| TFV012 | - | 1/2" | 16 | 28,5 | 15 | 13 | 32 |
| TFV400 | - | 4" | 16 | 133 | 39,3 | 83 | 1710 |
