TIC
Εξαρτήματα Κολλητά με Μούφα

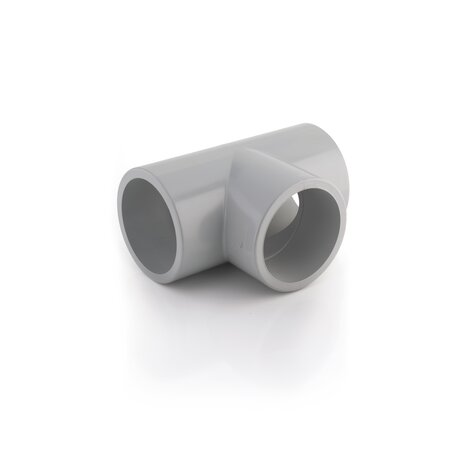

90Β° Tee with solvent weld sockets
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Κωδικός προϊόντος | tooltipImage | d | PN | E | L | Z | g |
|---|---|---|---|---|---|---|---|
| TIC016 | - | 16 | 16 | 22 | 14 | 9 | 15 |
| TIC020 | - | 20 | 16 | 27 | 16 | 11 | 25 |
| TIC025 | - | 25 | 16 | 33 | 19 | 14 | 45 |
| TIC032 | - | 32 | 16 | 41 | 22 | 17,5 | 75 |
| TIC040 | - | 40 | 16 | 50 | 26 | 22 | 125 |
| TIC050 | - | 50 | 16 | 61 | 31 | 27 | 195 |
| TIC063 | - | 63 | 16 | 76 | 38 | 33,5 | 394 |
| TIC075 | - | 75 | 16 | 91 | 44 | 38,5 | 667 |
| TIC090 | - | 90 | 16 | 109 | 51 | 48 | 1075 |
| TIC110 | - | 110 | 16 | 133 | 61 | 61 | 1920 |
| TIC160 | - | 160 | 16 | 192 | 86 | 89 | 5730 |
| TIC225 | - | 225 | 10 | 258 | 119 | 114 | 10800 |
