TIFV
Αντάπτορες

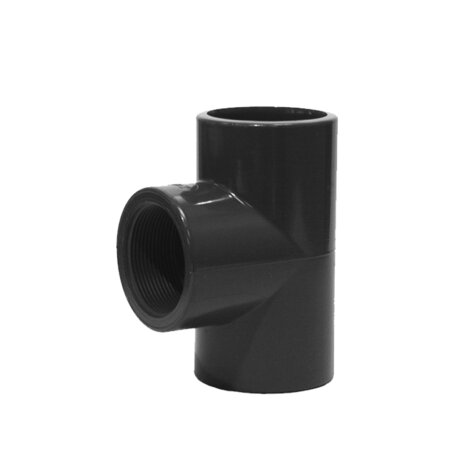

90Β° Tee with solvent weld socket d and BSP threaded female end R
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.

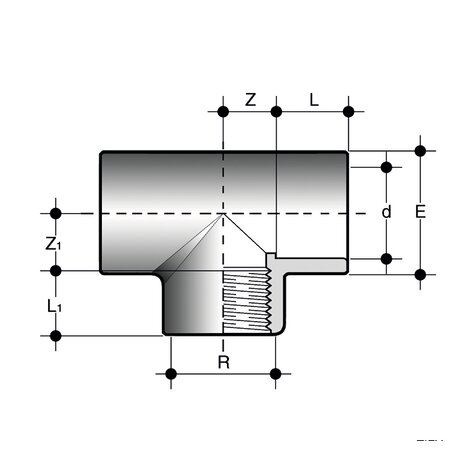

| Κωδικός προϊόντος | tooltipImage | d x R | PN | E | L | L[5:1] | Z | Z[5:1] | g |
|---|---|---|---|---|---|---|---|---|---|
| TIFV016038 | - | 16 x 3/8" | 16 | 23,5 | 14 | 11,4 | 9 | 11 | 20 |
| TIFV020012 | - | 20 x 1/2" | 16 | 28,5 | 16 | 15 | 12 | 13 | 32 |
| TIFV025034 | - | 25 x 3/4" | 16 | 35 | 19 | 16,3 | 15 | 17 | 52 |
| TIFV032012 | - | 32 x 1/2" | 16 | 41 | 22 | 15 | 17,5 | 18 | 92 |
| TIFV032100 | - | 32 x 1" | 16 | 43 | 22 | 19,1 | 18 | 21 | 71 |
| TIFV040114 | - | 40 x 1"1/4 | 16 | 50 | 26 | 21,4 | 21,5 | 27 | 110 |
| TIFV050012 | - | 50 x 1/2" | 16 | 61 | 31 | 15 | 27 | 27,5 | 160 |
| TIFV050112 | - | 50 x 1"1/2 | 16 | 61 | 31 | 21,4 | 27 | 37 | 195 |
| TIFV063012 | - | 63 x 1/2" | 16 | 76 | 38 | 15 | 33,5 | 37,5 | 305 |
| TIFV063200 | - | 63 x 2" | 16 | 76 | 38 | 25,7 | 33,5 | 46 | 405 |
| TIFV075212 | - | 75 x 2"1/2 | 16 | 91 | 44 | 30,2 | 41 | 54,5 | 605 |
| TIFV090300 | - | 90 x 3" | 16 | 109 | 51 | 33,3 | 48,5 | 66 | 1070 |
| TIFV110400 | - | 110 x 4" | 16 | 103 | 61 | 39,3 | 61,5 | 83 | 1690 |
