ULF0X.X.X

Ultra Low Αισθητήρες Ροής

Ultra Low Flow Sensors

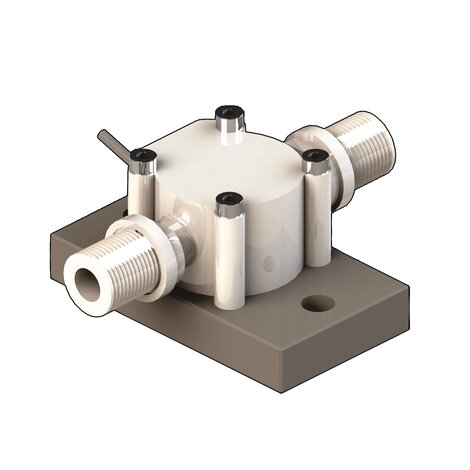

FLS compact Ultra Low Flow sensors ULF have been for use with every kind of aggressive and solid-free liquids. The sensor can be fixed to flexible or rigid pipes via 1/4β GAS threaded process connections. The paddlewheel sensor produces a frequency output proportional to the flow velocity that can be easily transmitted and processed. The ULF sensor offers two different flow ranges starting from 1.5 or 6 l/h (0.0066 or 0.0264 gpm). The construction materials, POM or ECTFE (HalarΒ), provide high strength and chemical resistance.

Επιστροφή Τεχνικό Φυλλάδιο

Κωδικός προϊόντος	Version	Power supply	Lenght	Main Wetted Materials	Enclosure	Flow Rate Range	Weight (gr.)
ULF01.H.0	Hall	5 - 24 VCC	77 mm	POM $ FKM	IP65	From 1,5 to 100 l/h*	170
ULF01.H.2	Hall	5 - 24 VCC	77 mm	ECTFE $ FKM	IP65	From 1,5 to 100 l/h*	200
ULF01.H.3	Hall	5 - 24 VCC	77 mm	ECTFE $ KALREZ	IP65	From 1,5 to 100 l/h*	200
ULF01.R.0	Reed	None	77 mm	POM $ FKM	IP65	From 1,5 to 100 l/h*	170
ULF01.R.2	Reed	None	77 mm	ECTFE $ FKM	IP65	From 1,5 to 100 l/h*	200
ULF01.R.3	Reed	None	77 mm	ECTFE $ KALREZ	IP65	From 1,5 to 100 l/h*	200
ULF03.H.0	Hall	5 - 24 VCC	77 mm	POM $ FKM	IP65	From 1,5 to 100 l/h*	170
ULF03.H.2	Hall	5 - 24 VCC	77 mm	ECTFE $ FKM	IP65	From 1,5 to 100 l/h*	200
ULF03.H.3	Hall	5 - 24 VCC	77 mm	ECTFE $ KALREZ	IP65	From 1,5 to 100 l/h*	200
ULF03.R.0	Reed	None	77 mm	POM $ FKM	IP65	From 1,5 to 100 l/h*	170
ULF03.R.2	Reed	None	77 mm	ECTFE $ FKM	IP65	From 1,5 to 100 l/h*	200
ULF03.R.3	Reed	None	77 mm	ECTFE $ KALREZ	IP65	From 1,5 to 100 l/h*	200

APPLICATIONS βʼ Water treatment βʼ Chemical industry βʼ Pharmaceutical industry βʼ Dosing systems βʼ Laboratory plants MAIN FEATURES βʼ POM or ECTFE (HalarΒ) wetted parts βʼ Two flow ranges available: - 1.5 - 100 l/h (0.0066 - 0.44 gpm) - 6 - 250 l/h (0.0264 - 1.1 gpm) βʼ High chemical resistance βʼ Easy mounting
