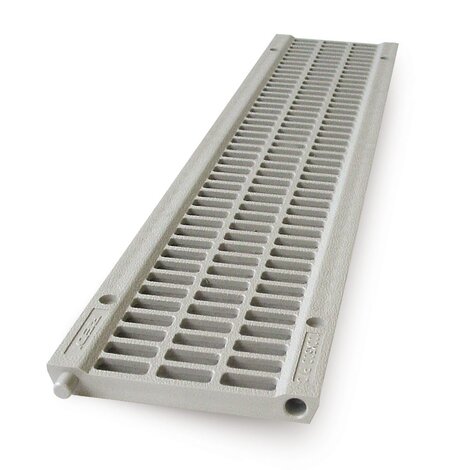

100 Grill Heel Proof
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills.
These channels can be placed in flat open areas without digging limitations. Suitable for pedestrian areas.
Material: PVC.
Use: pedestrian draining grating for 100 channels.
Features:
-heel proof for a safer tread
- antislip knurled surface and chamfered draining section to avoid backwater and icing
- provided with coupling pins
- preset for screw fastening to the channel.
Durability: PVC specifications and structure design give this product a great resistance against atmospheric agents and ageing and ensure dimensional stability in time.

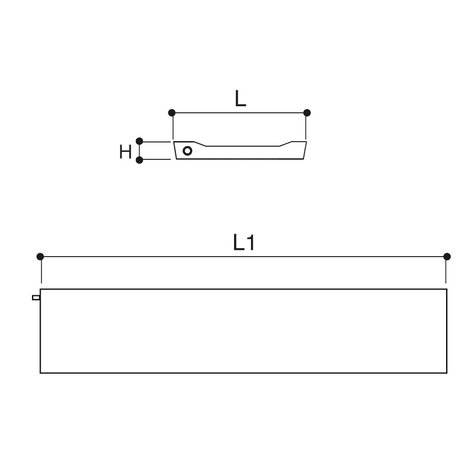

| Reference | tooltipImage | RAL | H (mm) | L (mm) | L1 (mm) | kN | I/s | Material |
|---|---|---|---|---|---|---|---|---|
| E2510B4 | - | 7035 | 12 | 100 | 500 | >15 | 2,3 | PVC |
Downloads
1.9 MB,
PDF
get_app
REDI Export Catalogue
