BBE-C SDR 11 - Complete union

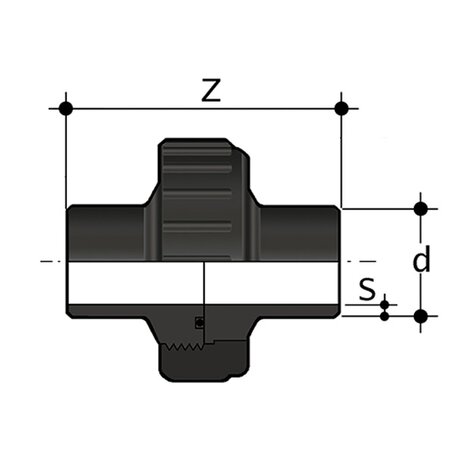

Complete union, short spigot, for butt welding with EPDM or FKM O-ring SDR 11 - S5.
Series of short and long fittings designed for conveying fluids under pressure for butt welding and electrofusion applications.
EPDM
| Reference | tooltipImage | product.detail.attribute.textBelowTableText | system | Category | family | series | d | Z | S | g |
|---|---|---|---|---|---|---|---|---|---|---|
| BBEC11020E | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 20 | 110 | 1,9 | 60 |
| BBEC11025E | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 25 | 110 | 2,3 | 83 |
| BBEC11032E | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 32 | 110 | 2,9 | 123 |
| BBEC11040E | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 40 | 110 | 3,7 | 214 |
| BBEC11050E | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 50 | 110 | 4,6 | 299 |
| BBEC11063E | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 63 | 110 | 5,8 | 491 |
| BBEC11075E* | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 75 | 110 | 6,8 | 599 |
| BBEC11090E* | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 90 | 180 | 8,2 | 737 |
| BBEC11110E* | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 110 | 180 | 10,0 | 1154 |
FKM
| Reference | tooltipImage | product.detail.attribute.textBelowTableText | system | Category | family | series | d | Z | S | g |
|---|---|---|---|---|---|---|---|---|---|---|
| BBEC11020F | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 20 | 110 | 1,9 | 60 |
| BBEC11025F | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 25 | 110 | 2,3 | 83 |
| BBEC11032F | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 32 | 110 | 2,9 | 123 |
| BBEC11040F | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 40 | 110 | 3,7 | 214 |
| BBEC11050F | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 50 | 110 | 4,6 | 299 |
| BBEC11063F | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 63 | 110 | 5,8 | 491 |
| BBEC11075F* | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 75 | 110 | 6,8 | 599 |
| BBEC11090F* | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 90 | 180 | 8,2 | 737 |
| BBEC11110F* | - | * reduced pressure class (PN 10) with PVC nut only | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | 110 | 180 | 10,0 | 1154 |
- Size range: d 12 ÷ d 800 (mm)
- Nominal pressure: SDR 17 (PN10) with water at 20 °C, SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Flanging system: ISO 7005-1, EN 1092-1, EN ISO 15494, ANSI B16.5 cl.150
- Construction criteria: UNI EN ISO 15494
- Test methods and requirements: UNI EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307,UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
- Seal material: EPDM, FKM
