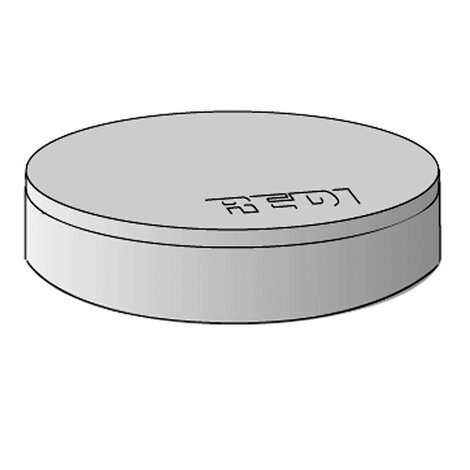

Cap Female F
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

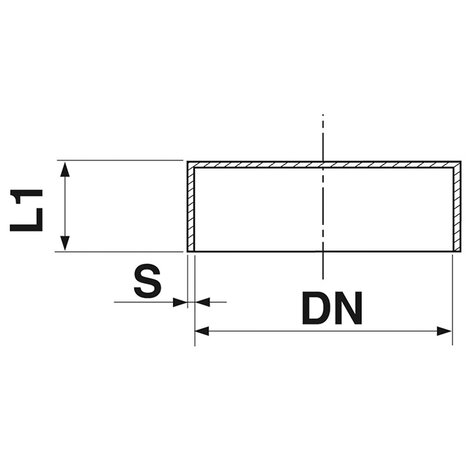

| Reference | tooltipImage | S (mm) | L1 (mm) | DN (mm) |
|---|---|---|---|---|
| 06613F2 | - | 2,0 | 32 | 110 |
| 06615F2 | - | 2,5 | 32 | 125 |
| 06617F2 | - | 2,7 | 35 | 160 |
| 06621F2 | - | 2,9 | 35 | 200 |
| 06628F2 | - | 3,5 | 40 | 250 |
| 06634F2 | - | 4,0 | 52 | 315 |
| 06640F2 | - | 4,0 | 52 | 400 |
Downloads
3.8 MB,
PDF
Catalogue REDI
