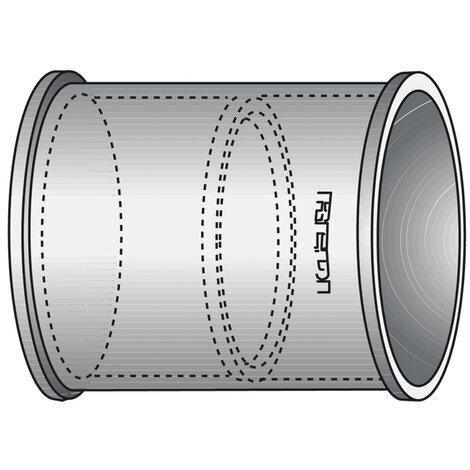

Coupler with central stop F/F
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

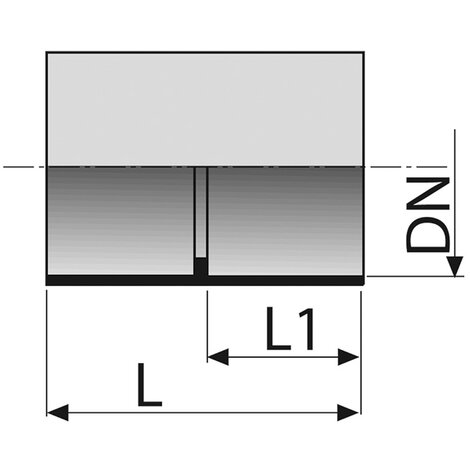

| Reference | tooltipImage | L (mm) | L1 (mm) | DN (mm) |
|---|---|---|---|---|
| 063030M | - | 49 | 23 | 32 |
| 063040M | - | 57 | 27 | 40 |
| 063050M | - | 67 | 32 | 50 |
| 063060M | - | 81 | 39 | 63 |
| 063070M | - | 92 | 44,5 | 75 |
| 063080M | - | 97 | 47 | 80 |
| 063100M | - | 116 | 57 | 100 |
| 063110M | - | 125 | 61 | 110 |
| 063120M | - | 138 | 67,5 | 125 |
| 0631602 | - | 172 | 84 | 160 |
| 0632002 | - | 217 | 106 | 200 |
| 0632502 | - | 252 | 123 | 250 |
| 0633002 | - | 296 | 145 | 315 |
Downloads
3.8 MB,
PDF
get_app
REDI Export Catalogue
