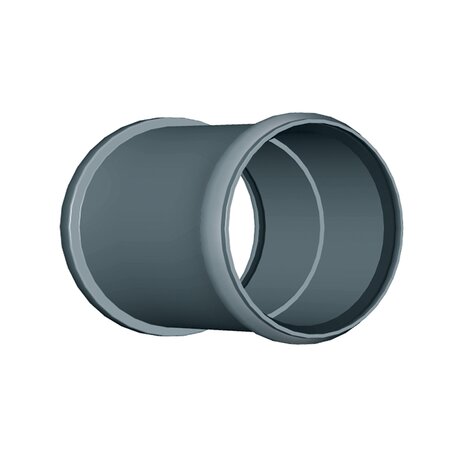

Coupler with central stop F/F
ULTRAMAX completed with AMAX fittings range is the push-fit polypropylene complete soil and waste system for civil and industrial waste water drainage.
EN 1451 Push-Fit PP Pipe and Fittings
Impact-Resistant
B1 Fire Reaction Class, Self-extinguishing

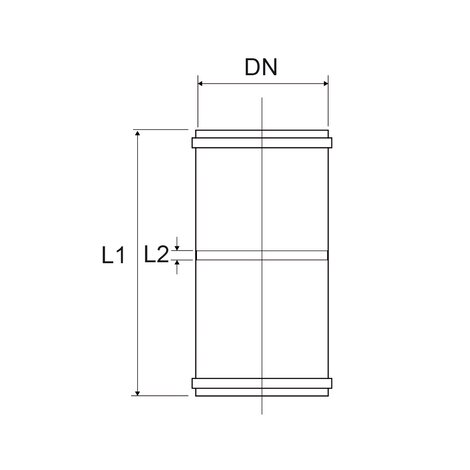

| Reference | tooltipImage | Colour | L1 (mm) | L2 (mm) | DN (mm) |
|---|---|---|---|---|---|
| Z6332PP | - | Grey RAL 7037 | 88 | 1,2 | 32 |
| Z6340PP | - | Grey RAL 7037 | 108 | 1,2 | 40 |
| Z6350PP | - | Grey RAL 7037 | 105 | 1,2 | 50 |
| Z6375PP | - | Grey RAL 7037 | 144,5 | 1,5 | 75 |
| Z6390PP | - | Grey RAL 7037 | 120 | - | 90 |
| Z6311PP | - | Grey RAL 7037 | 126 | 1,5 | 110 |
| Z6312PP | - | Grey RAL 7037 | 166,5 | 2,7 | 125 |
| Z6316PP | - | Grey RAL 7037 | 181 | 3,0 | 160 |
Certificates
Downloads
1.2 MB,
PDF
Catalogue REDI
