Emergency overflow set for Akasison XL75 and XL90
The emergency overflow set can be applied in combination with Akasison roof outlets XL75 and 90.

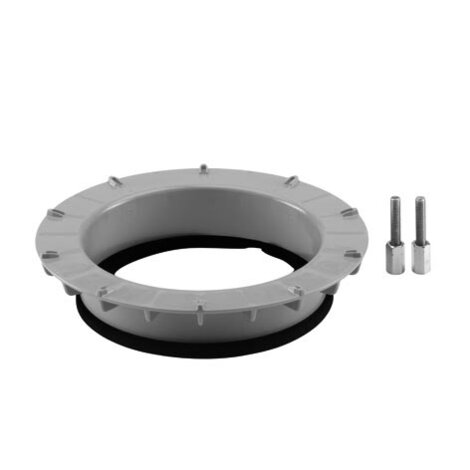

Delivery includes: Emergency overflow flange.
EPDM seal.
Air baffle and leaf guard fixation extension (set of 2).
Application: Emergency overflow system.
Performance: 1-17,7 l/s.
Material: ASA, EPDM and stainless steel.
n = number of bolts
M = thread
Delivery includes
Application
Performance
Material
n = number of bolts
M = thread
| Name : | Emergency overflow set for Akasison XL75 and XL90 |
| Subcategory : | Roof outlets |

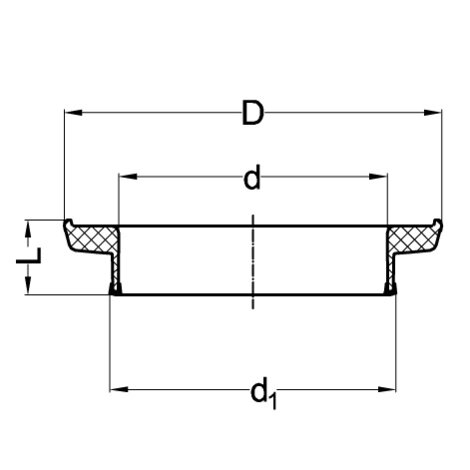

| Reference | Name | tooltipImage | Kg | L | d | d1 | D | n | M |
|---|---|---|---|---|---|---|---|---|---|
| 74 75 90 | Emergency overflow set for Akasison XL75 and XL90 | - | 0,500 | 44 | 176 | 187 | 245 | 2 | 8 |
