GIC
Solvent weld fittings - equal socket.

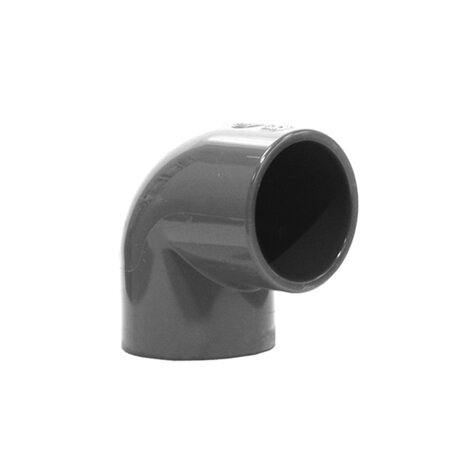

90° elbow with solvent weld sockets (fig. A).
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Reference | tooltipImage | system | Category | family | d | PN | E | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|
| GIC016 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 16 | 16 | 22 | 14 | 9 | 12 |
| GIC020 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 20 | 16 | 27 | 16 | 11,5 | 20 |
| GIC025 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 25 | 16 | 33 | 19 | 14 | 34 |
| GIC032 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 32 | 16 | 41 | 22 | 16,5 | 56 |
| GIC040 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 40 | 16 | 50 | 26 | 22,5 | 95 |
| GIC050 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 50 | 16 | 61 | 31 | 27 | 155 |
| GIC063 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 63 | 16 | 76 | 38 | 33,5 | 283 |
| GIC075 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 75 | 16 | 91 | 44 | 40,3 | 490 |
| GIC090 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 90 | 16 | 107 | 51 | 48 | 745 |
| GIC110 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 110 | 16 | 130 | 61 | 60 | 1265 |
| GIC160 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 160 | 16 | 194 | 87 | 93 | 4450 |
