IFFV
Threaded fittings - reducers.

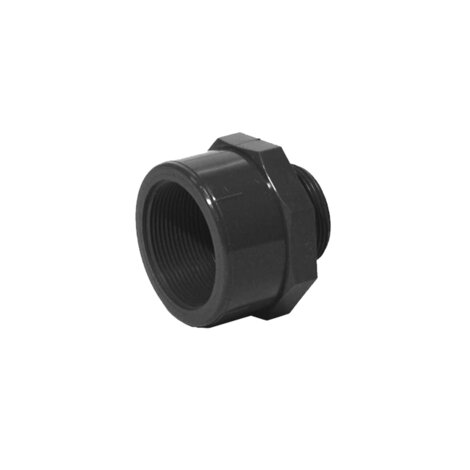

Reducer: BSP threaded female end (R1), BSP threaded male end (R reduced).
Series of fittings for pipes conveying fluids under pressure with threaded joints.

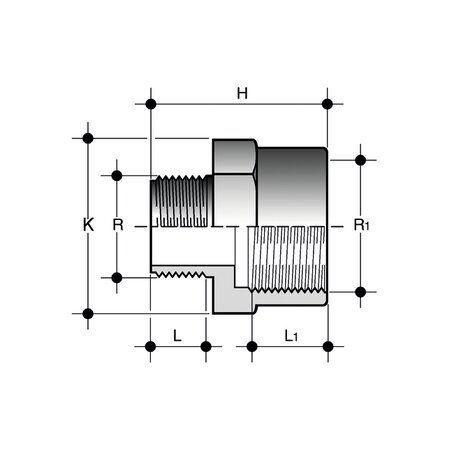

| Reference | tooltipImage | system | Category | family | R[5:1] x R | PN | H | K | L | L1 | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IFFV034012 | - | PVC-U system | Pressure Fittings | BSP Fittings | 3/4" x 1/2" | 16 | 41 | 36 | 15 | 16,3 | 22 |
| IFFV100012 | - | PVC-U system | Pressure Fittings | BSP Fittings | 1" x 1/2" | 16 | 40,5 | 43 | 15 | 19,1 | 30 |
| IFFV100034 | - | PVC-U system | Pressure Fittings | BSP Fittings | 1" x 3/4" | 16 | 42 | 43 | 16,3 | 19,1 | 42 |
| IFFV114100 | - | PVC-U system | Pressure Fittings | BSP Fittings | 1"1/4 x 1" | 16 | 55 | 55 | 19,1 | 21,4 | 55 |
| IFFV112114 | - | PVC-U system | Pressure Fittings | BSP Fittings | 1"1/2 x 1"1/4 | 16 | 62 | 65 | 21,4 | 21,4 | 102 |
| IFFV200112 | - | PVC-U system | Pressure Fittings | BSP Fittings | 2" x 1"1/2 | 16 | 69 | 80 | 21,4 | 25,7 | 165 |
| IFFV212200 | - | PVC-U system | Pressure Fittings | BSP Fittings | 2"1/2 x 2" | 16 | 81 | 95 | 25,7 | 30,2 | 210 |
| IFFV300212 | - | PVC-U system | Pressure Fittings | BSP Fittings | 3" x 2"1/2 | 16 | 93 | 110 | 30,2 | 33,3 | 360 |
| IFFV400300 | - | PVC-U system | Pressure Fittings | BSP Fittings | 4" x 3" | 16 | 106 | 130 | 33,3 | 39,3 | 500 |
