JFV

Adaptor fittings - tank connectors.

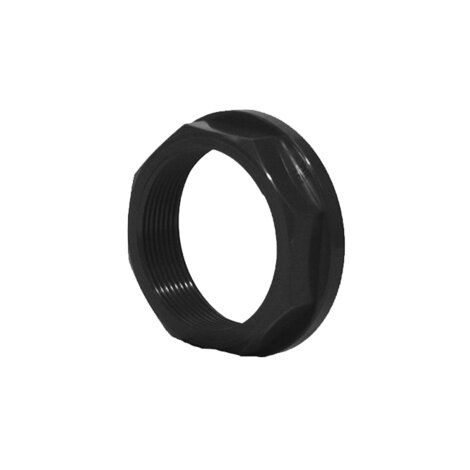

Back nut with BSP thread (used on LIV and LIFV).

Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
Go back Data sheet

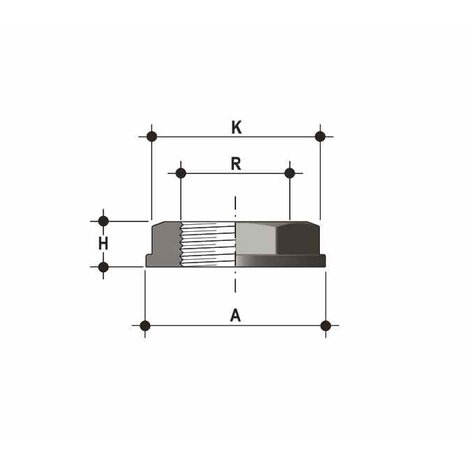

Reference system Category family R PN A H K g
1RNU220000 PVC-U system Pressure Fittings ISO-BSP Fittings 1/2" 16 38 13 28 11
1RNU225000 PVC-U system Pressure Fittings ISO-BSP Fittings 3/4" 16 44 13,5 33 14
1RNU232000 PVC-U system Pressure Fittings ISO-BSP Fittings 1" 16 58 16 46 31
1RNU240000 PVC-U system Pressure Fittings ISO-BSP Fittings 1"1/4 16 62 18 50 32
1RNU250000 PVC-U system Pressure Fittings ISO-BSP Fittings 1"1/2 16 76 19 60 52
1RNU263000 PVC-U system Pressure Fittings ISO-BSP Fittings 2" 16 92 21 79 84
