KBFM - Adaptor

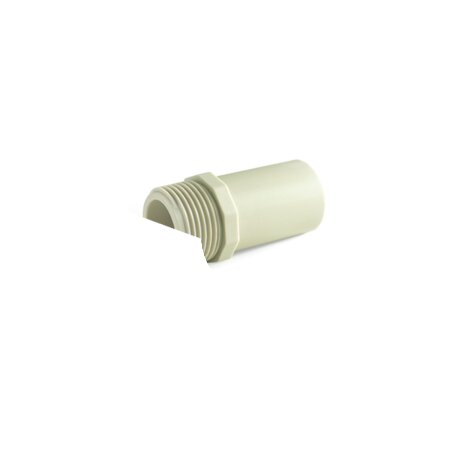

Double adaptor for butt welding (d), BSP (R) threaded male end.
Series of fittings designed for conveying fluids under pressure with a thread and weld connection system (butt welding).

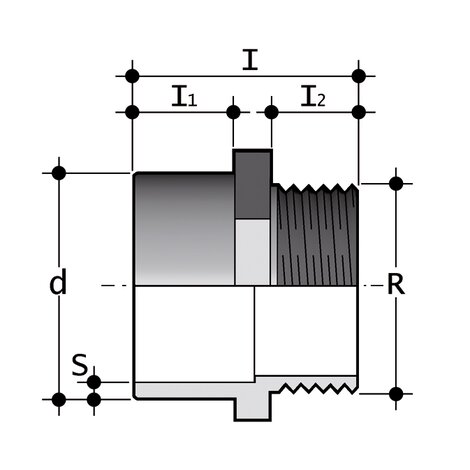

| Reference | tooltipImage | system | Category | family | d x R | I | I[5:1] | I[5:2] | g |
|---|---|---|---|---|---|---|---|---|---|
| KBFM11020012 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Butt Welding | 20 x 1/2" | 58 | 38 | 14 | 9 |
| KBFM11025034 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Butt Welding | 25 x 3/4" | 61 | 41 | 14 | 12 |
| KBFM11032100 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Butt Welding | 32 x 1" | 69 | 44 | 18 | 21 |
| KBFM11040114 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Butt Welding | 40 x 1"1/4 | 75 | 49 | 19 | 37 |
| KBFM11050112 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Butt Welding | 50 x 1"1/2 | 82 | 55 | 20 | 58 |
| KBFM11063200 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Butt Welding | 63 x 2" | 91 | 63 | 21 | 95 |
