MIC

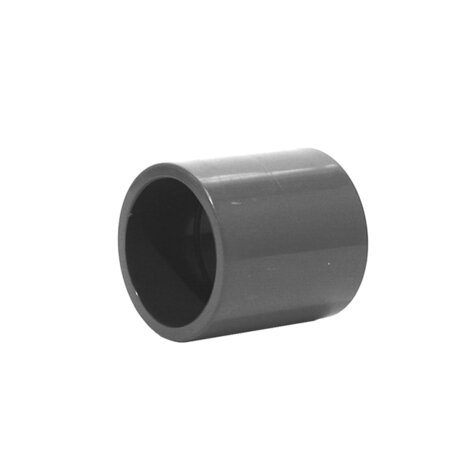

Solvent weld fittings - equal socket.
Solvent weld double socket.
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Reference | tooltipImage | system | Category | family | d | PN | E | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|
| MIC016 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 16 | 16 | 22 | 14 | 3 | 9 |
| MIC020 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 20 | 16 | 27 | 16 | 3 | 11 |
| MIC025 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 25 | 16 | 33 | 19 | 3 | 21 |
| MIC032 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 32 | 16 | 41 | 22 | 3 | 31 |
| MIC040 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 40 | 16 | 50 | 26 | 3 | 58 |
| MIC050 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 50 | 16 | 61 | 31 | 3 | 90 |
| MIC063 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 63 | 16 | 75 | 38 | 3 | 160 |
| MIC075 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 75 | 16 | 89 | 44 | 3 | 260 |
| MIC090 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 90 | 16 | 108 | 51 | 5 | 465 |
| MIC110 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 110 | 16 | 130 | 61 | 9 | 750 |
| MIC160 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 160 | 16 | 186 | 86 | 9 | 1820 |
| MIC225 | - | PVC-C system | Pressure Fittings | ISO-UNI Fittings | 225 | 10 | 260 | 119 | 11 | 5360 |
