MIMV
Adaptor fittings.

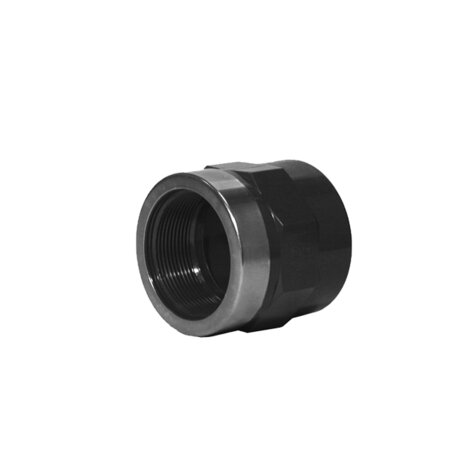

Double socket with solvent weld socket d and BSP threaded female end R with stainless steel reinforcing ring.
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
| Reference | tooltipImage | system | Category | family | d x R | PN | E | E[5:1] | K | L | L1 | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIMV016038 | - | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 16 x 3/8" | 16 | 23,5 | 24,5 | 24 | 14 | 11,4 | 5,5 | 14 |
| MIMV020012 | - | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 20 x 1/2" | 16 | 28,5 | 29,5 | 29 | 16 | 15 | 4 | 23 |
| MIMV025034 | - | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 25 x 3/4" | 16 | 35 | 36 | 35 | 19 | 16,3 | 5 | 34 |
| MIMV032100 | - | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 32 x 1" | 16 | 43 | 44 | 43 | 22 | 19,1 | 6 | 53 |
| MIMV040114 | - | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 40 x 1"1/4 | 16 | 50 | 51 | 50 | 26 | 21,4 | 5 | 62 |
| MIMV050112 | - | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 50 x 1"1/2 | 16 | 61 | 62 | 61 | 31 | 21,4 | 8 | 110 |
| MIMV063200 | - | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 63 x 2" | 16 | 76 | 77 | 76 | 38 | 25,7 | 7,5 | 190 |
