PFV
Threaded fittings.

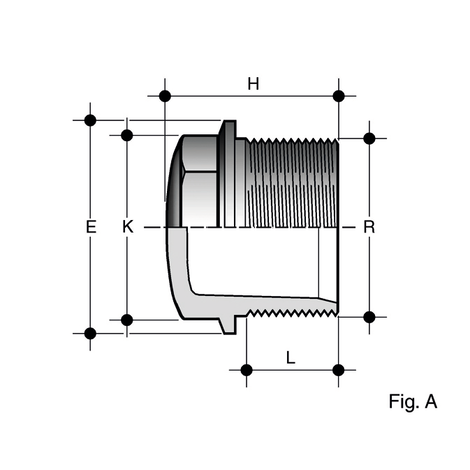

Plug with BSP male thread (Fig. A).
Series of fittings for pipes conveying fluids under pressure with threaded joints.
| Reference | system | Category | family | R | PN | E | H | K | L | g |
|---|---|---|---|---|---|---|---|---|---|---|
| PFV038 | PVC-U system | Pressure Fittings | BSP Fittings | 3/8" | 16 | 22 | 22 | 18 | 11,4 | 4 |
| PFV012 | PVC-U system | Pressure Fittings | BSP Fittings | 1/2" | 16 | 28 | 26 | 23 | 15 | 8 |
| PFV034 | PVC-U system | Pressure Fittings | BSP Fittings | 3/4" | 16 | 34 | 30 | 28 | 16,3 | 11 |
| PFV100 | PVC-U system | Pressure Fittings | BSP Fittings | 1" | 16 | 40 | 34 | 35 | 19,1 | 21 |
| PFV114 | PVC-U system | Pressure Fittings | BSP Fittings | 1"1/4 | 16 | 52 | 38 | 44 | 21,4 | 30 |
| PFV112 | PVC-U system | Pressure Fittings | BSP Fittings | 1"1/2 | 16 | 58 | 40 | 51 | 21,4 | 46 |
| PFV200 | PVC-U system | Pressure Fittings | BSP Fittings | 2" | 16 | 70 | 47 | 64 | 25,7 | 74 |
