PMKD Wall mounting plate
Accessories for VKD and VKR Dual Block® series ball valves DN 10÷50
Wall mounting and distance plate.

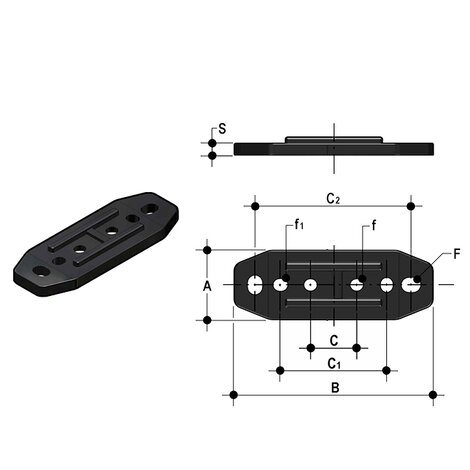

Reference | system | Category | family | DN | A | B | C | C1 | C2 | F | f | f[5:1] | S | to be used with: |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PMKD1 | Special parts and accessories | Accessories for manual valves | Accessories for DualBlock ball valves | 25 | 30 | 86 | 20 | 46 | 67,5 | 6,5 | 5,3 | 5,5 | 5 | VKD-VKR |
PMKD2 | Special parts and accessories | Accessories for manual valves | Accessories for DualBlock ball valves | 50 | 40 | 122 | 30 | 72 | 102 | 6,5 | 6,3 | 6,5 | 6 | VKD-VKR |
