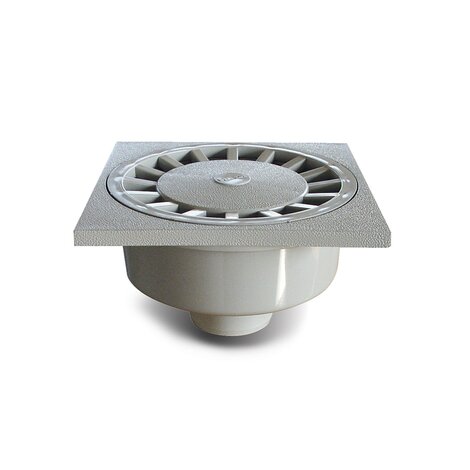

PP Floor drain (external outlet)
SURFACE DRAINAGE SYSTEMS, FLOR DRAINS
Especially designed for public premises, balconies, industrial kitchens, public lavatories and in all cases a trapping action is required.
Material: Polypropylene.
Use: to collect rain and waste water.
Advantages:
- easy inspection and cleaning
- internal, external and horizontal outlet versions available.
All products can be classified in load class K3 in accordance with regulation EN 1253 (resistance >300 kg). All tests have been carried out at Aliaxis laboratories.
Tested by CSTB.

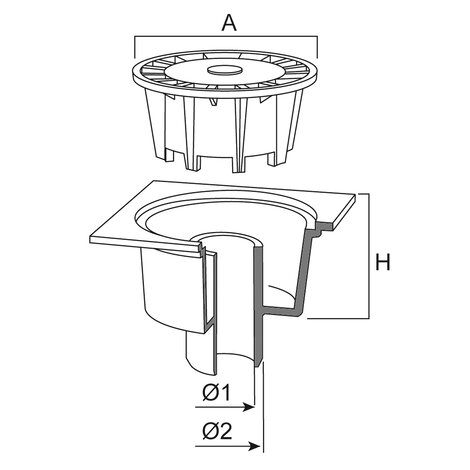

| Reference | tooltipImage | RAL | A (mm) | H (mm) | Ø (mm) | Dim (mm) | I/s |
|---|---|---|---|---|---|---|---|
| EP75104 | - | 7035 | 177 | 83 | 80 | 200 | 1,5 |
| EP75804 | - | 7035 | 130 | 59 | 50 | 150 | - |
| EP75904 | - | 7035 | 130 | 65 | 50 | 200 | - |
| EP76004 | - | 7035 | 177 | 83 | 75 | 200 | 1,6 |
| EP76404 | - | 7035 | 177 | 83 | 110 | 200 | 1,6 |
| EP76904 | - | 7035 | 177 | 83 | 110 | 250 | 1,5 |
| EP77304 | - | 7035 | 177 | 83 | 100 | 300 | 1,5 |
| EP95604 | - | 7035 | 92 | 61 | 50 | 100 | 0,8 |
