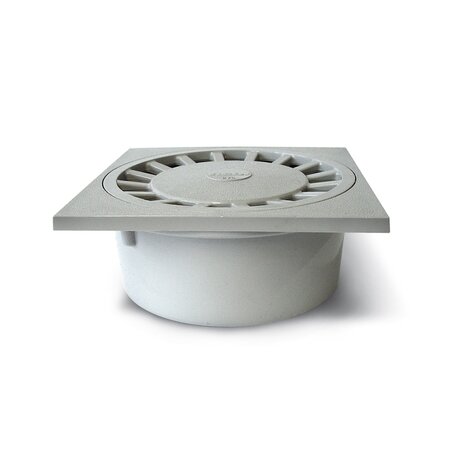

PP Floor drain (internal outlet)
SURFACE DRAINAGE SYSTEMS, FLOR DRAINS
Especially designed for public premises, balconies, industrial kitchens, public lavatories and in all cases a trapping action is required.
Material: Polypropylene.
Use: to collect rain and waste water.
Advantages:
- easy inspection and cleaning
- internal, external and horizontal outlet versions available.
All products can be classified in load class K3 in accordance with regulation EN 1253 (resistance >300 kg). All tests have been carried out at Aliaxis laboratories.
Tested by CSTB.

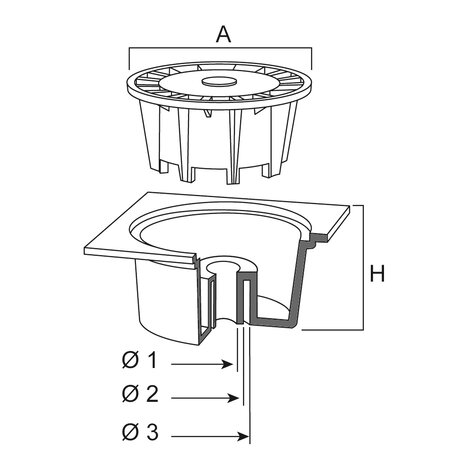

| Reference | tooltipImage | RAL | A (mm) | H (mm) | Ø (mm) | Dim (mm) | Ø1 (mm) | Ø2 (mm) | diameter3Mm | lsDiameter1 | lsDiameter2 | lsDiameter3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E195004 | - | 7035 | 92 | 50 | 32 | 100 | 40 | 40 | - | 0,4 | 0,6 | - |
| E195504 | - | 7035 | 138 | 63 | 40 | 150 | 50 | 50 | - | 0,7 | 0,8 | 0,8 |
| E196004 | - | 7035 | 182 | 92 | - | 200 | 80 | 80 | 100 | 1,4 | - | - |
| E196104 | - | 7035 | 228 | 95 | - | 250 | 110 | 110 | - | 3 | - | - |
| E196204 | - | 7035 | 228 | 95 | - | 250 | 100 | 100 | - | 3 | - | - |
| E196304 | - | 7035 | 228 | 95 | - | 300 | 100 | 100 | - | 3 | - | - |
| E196404 | - | 7035 | 228 | 95 | - | 300 | 110 | 110 | - | 3 | - | - |
