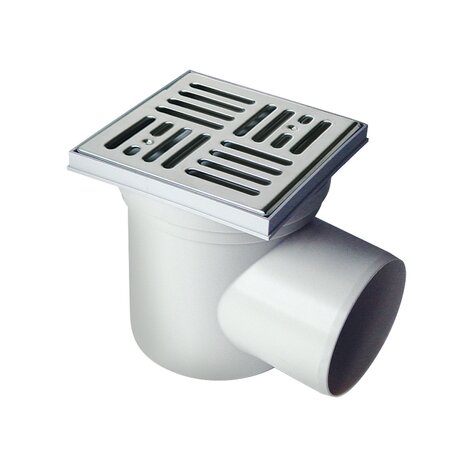

PP High capacity floor drain 1 outlet, low version

SURFACE DRAINAGE SYSTEMS, FLOR DRAINS

Especially designed for yards, garages cellars and any areas where a high drainage capacity is required.
Material: Polypropylene
Grill 150x150 mm
Advantages:
- inspection basket
- easy inspection
- an anti-backflow device can be fitted in to prevent back flooding (ref. EDP1104).

All products can be classified in load class K3 in accordance with regulation EN 1253 (resistance >300 kg). All tests have been carried out at Aliaxis laboratories.

Notes: With non-return element included in the Codes EBAK4AI - EBAK3PP

note : PP Grill
Go back Data sheet
PP High capacity floor drain 1 outlet, low version
PP High capacity floor drain 1 outlet, low version
PP High capacity floor drain 1 outlet, low version
PP High capacity floor drain 1 outlet, low version
PP High capacity floor drain 1 outlet, low version
PP High capacity floor drain 1 outlet, low version

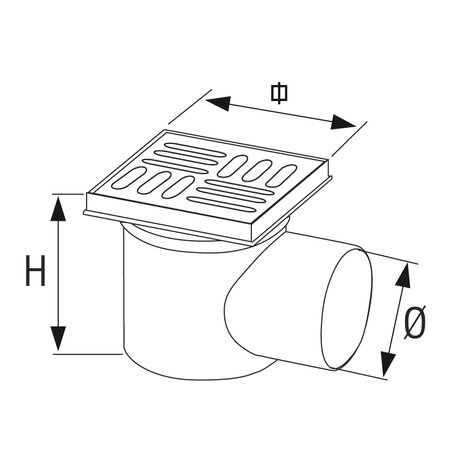

Reference tooltipImage RAL H (mm) Ø (mm) Dim (mm) I/s Material Grill
EBA11PP - 7035 168 75 150 >1,14 PP PP
EBA22AI - 7035 168 75 150 >1,05 PP Inox
EBA33PP - 7035 168 110 150 >1,41 PP PP
EBA44AI - 7035 168 110 150 >1,40 PP Inox
