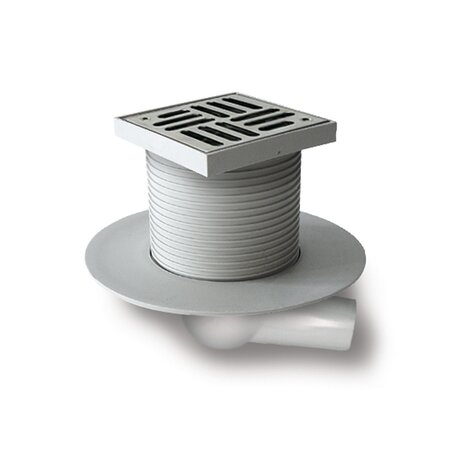

PP Horizontal outlet floor drain without trap
SURFACE DRAINAGE SYSTEMS, FLOR DRAINS
Especially designed for public premises, balconies, industrial kitchens, public lavatories and in all cases a trapping action is required.
Use: to collect rain and waste water.
Advantages:
- very low casing
- round plate and flange to lock the insulating membrane
- 360° adjustable riser
- easy inspection.
All products can be classified in load class K3 in accordance with regulation EN 1253 (resistance >300 kg). All tests have been carried out at Aliaxis laboratories.
Supplied with protection to permit easy installation.
Tested by MPA.
| note : | Stainless steel AISI 304 grill |

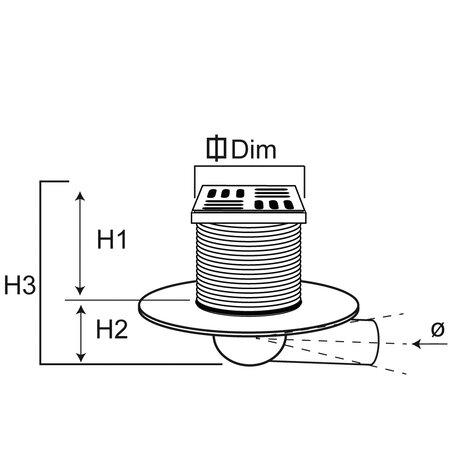

| Reference | tooltipImage | RAL | H1 (mm) | Ø (mm) | Dim (mm) | H1 mm Min | h3MmMin | h3MmMax | I/s | Material | Grill |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E7910AI | - | 7035 | 100 | 50 | 100 | 95 | 128 | 183 | 1,4 | PP | Inox |
| E7910PP | - | 7035 | 100 | 50 | 100 | 95 | 128 | 183 | 1,7 | PP | PP |
| E7915AI | - | 7035 | 100 | 50 | 150 | 95 | 128 | 183 | 1,9 | PP | Inox |
| E7915PP | - | 7035 | 100 | 50 | 150 | 95 | 128 | 183 | 1,8 | PP | PP |
