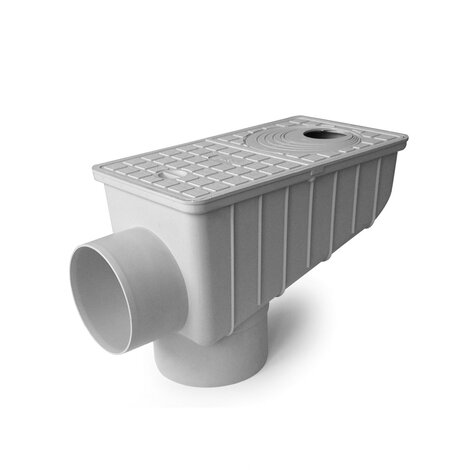

PP Untrapped rainwater gully with vertical/horizontal outlet
SURFACE DRAINAGE SYSTEMS, RAINWATER GULLIES
Pavements, grass or paved walkways: to use as inspection chamber for rain water flowing from gutter downpipes to the sewage.
Material: Polypropylene.
Benefits:
- PREVENTS ICING
- light-weight
- easier installation than concrete version
- fully injection moulded
- leaf guard to be positioned in horizontal or vertical direction
- high durability in the long term
- internal removable baffle plate
- cover fasten to the gully or grill
- available with round inlet Ø: 50/75/80/90/100/110/125
- vertical and horizontal outlet Ø100 (internaland) Ø110 (external)
- internal removable baffle plate
- cover or grill fasten to the gully.
Installation: a concrete floor seating is recommended.

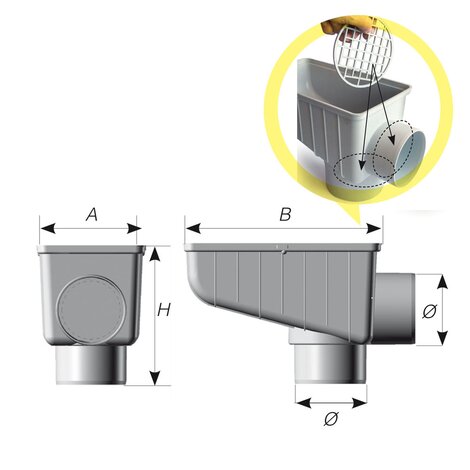

| Reference | tooltipImage | RAL | H (mm) | A x B (mm) | I/s | Ø1 inlets (mm) |
|---|---|---|---|---|---|---|
| Y891004 | - | 7035 | 215 | 166X300 | 3,7 | 50;75;80;90;100;110;125 |
