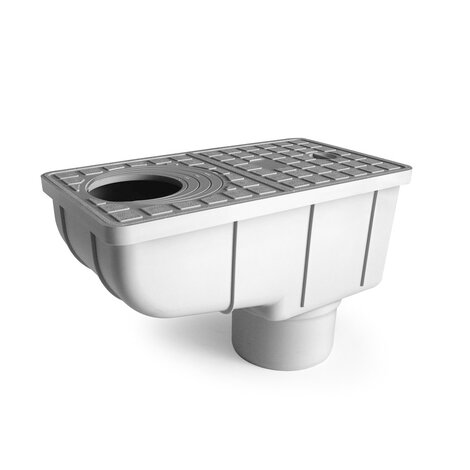

PP Untrapped rainwater gully with vertical outlet
SURFACE DRAINAGE SYSTEMS, RAINWATER GULLIES
Pavements, grass or paved walkways: to use as inspection chamber for rain water flowing from gutter downpipes to the sewage.
Tested by CSTB. Flow rate in accordance with regulation EN 1253-1 par. 8.11. Material: Polypropylene.
Benefits:
- PREVENTS ICING
- light-weight
- easier installation than concrete version
- fully injection moulded
- high durability in the long term
- access cover with handle
- leaves basket (except in model with Ø125 mm)
- internal removable baffle plate
- available with round inlet Ø: 75/80/90/100/110
- vertical outlet Ø100, Ø110 and Ø125.
Installation: a concrete floor seating is recommended.

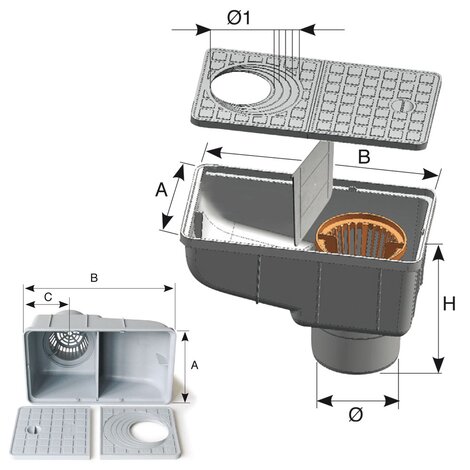

| Reference | tooltipImage | RAL | C (mm) | H (mm) | Ø (mm) | A x B (mm) | I/s | Ø1 inlets (mm) |
|---|---|---|---|---|---|---|---|---|
| Y881004 | - | 7035 | 80 | 195 | 100 | 166X300 | 4,9 | 50;75;80;90;100;110 |
| Y881104 | - | 7035 | 80 | 195 | 110 | 166X300 | 4,9 | 50;75;80;90;100;110 |
| Y88AL04 | - | 7035 | 80 | 215 | 125 | 166X300 | 4,9 | 50;75;80;90;100;110 |
