Reduced double branch
ULTRAMAX completed with AMAX fittings range is the push-fit polypropylene complete soil and waste system for civil and industrial waste water drainage.
EN 1451 Push-Fit PP Pipe and Fittings
Impact-Resistant
B1 Fire Reaction Class, Self-extinguishing

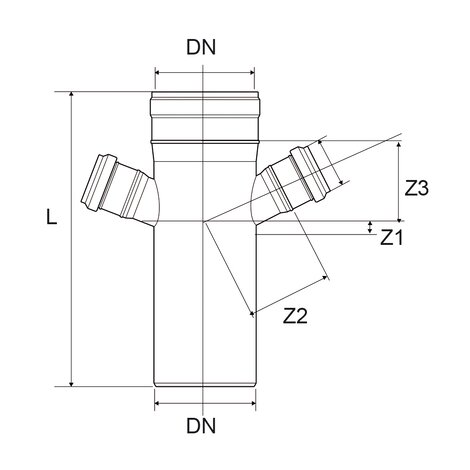

| Reference | tooltipImage | Colour | DN1 (mm) | Z1 (mm) | Z2 (mm) | Z3 (mm) | L1 (mm) | α | DN (mm) | Type | Version |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Z4540PP | - | Grey RAL 7037 | 40 | 19 | 87 | 79 | 120 | 45° | 90 | - | - |
| Z4550PP | - | Grey RAL 7037 | 50 | - | - | - | - | 45° | 90 | - | - |
| Z4650PP | - | Grey RAL 7037 | 40 | 10 | 96 | - | 153 | 45° | 110 | - | - |
| Z4675PP | - | Grey RAL 7037 | 50 | 10 | 92 | - | 153 | 45° | 110 | - | - |
| Z4711PP | - | Grey RAL 7037 | 50 | - | - | - | - | 67°30' | 110 | - | - |
| Z4411PP | - | Grey RAL 7037 | 50 | - | - | - | - | 87°30' | 110 | - | - |
| Z4712PP | - | Grey RAL 7037 | 110 | - | - | - | - | 45° | 125 | Fabricated | upon request |
