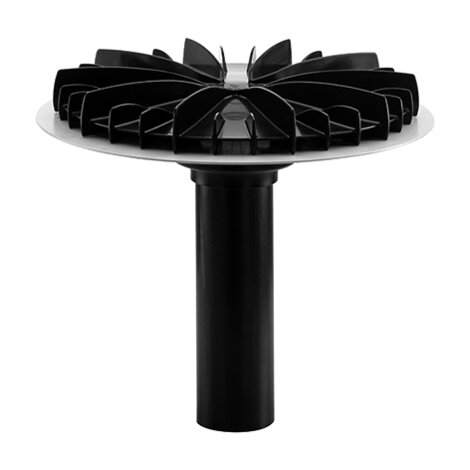

Roof outlet Akasison XL90 PVC
Roof outlet with PVC clamp flange acc. to EN 1253 for siphonic roof drainage systems. Suitable for homogeneous securing/sealing of PVC roof sealing membrane.
Delivery includes:
Akasison leaf guard set Code 749053
- Akasison air baffle with integrated leaf guard (UV-stabilized).
- Bolts.
Akasison XL90 roof outlet PVC Code 749044
- Roof outlet with PVC clamp flange for connection with PVC roof sealing membrane.
- Connection to HDPE.
Application: Cold roof/warm roof.
Insulation thickness: between 60 and 300 mm.
Connection to HDPE: Electrofusion coupler d90 mm Code 410995.
Dimensions: d1<> = 90 mm.
H = 55 mm.
S = 455 mm.
A = 180 mm.
Drilling core size: Ø ? 100 mm.
140 mm in combination with installation socket Code 749201.
Performance: 1-29,0 l/s.
Material: ASA, PVC, HDPE.
Delivery includes
Akasison leaf guard set Code 749053
Akasison XL90 roof outlet PVC Code 749044
Application
Insulation thickness
Connection to HDPE
Dimensions
Drilling core size
Performance
Material
| Name : | Roof outlet Akasison XL90 PVC |
| Subcategory : | Roof outlets |
| Reference | Name | tooltipImage | d1 | Type | description |
|---|---|---|---|---|---|
| 74 90 04 | Roof outlet Akasison XL90 PVC | - | 90 | Akasison XL90 PVC | PVC |
