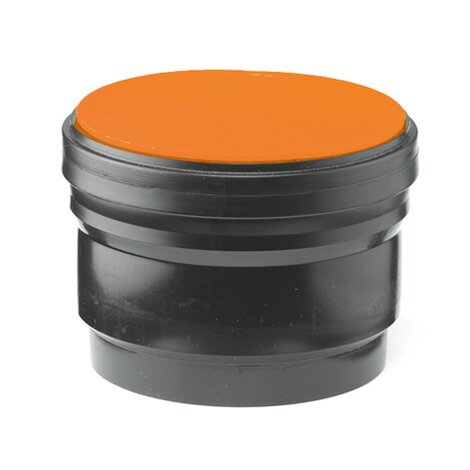

Snap socket
With protection plug
1 sealing ring2 snap ringThe snap socket can be used as a plug-in connection and a pull tight connection. The snap ring (besides the rubber sealing ring) provides the possibility to make a pull tight connection between pipe and snap socket, provided that a groove is cut into the pipe with a groove cutter (see chapter Tools). The pipe end should be pushed into the snap socket entirely.Butt-weld only
| Name : | Snap socket With protection plug |
| Subcategory : | Plug-in joints |
| Reference | Name | tooltipImage | d1 | Kg | D | d | L | l1 | noteEnum | noteText | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 400410 | Snap socketWith protection plug | - | 40 | 0,04 | 55 | 41 | 73 | 55 | 1 | SBR seal | 1 |
| 400510 | Snap socketWith protection plug | - | 50 | 0,048 | 65 | 51 | 77 | 55 | 1 | SBR seal | 1 |
| 400610 | Snap socketWith protection plug | - | 63 | 0,074 | 78 | 64 | 90 | 70 | 1 | SBR seal | 1 |
| 400710 | Snap socketWith protection plug | - | 75 | 0,086 | 90 | 76 | 90 | 70 | 1 | SBR seal | 1 |
| 400910 | Snap socketWith protection plug | - | 90 | 0,116 | 110 | 91 | 90 | 70 | 1 | SBR seal | 1 |
| 401110 | Snap socketWith protection plug | - | 110 | 0,16 | 130 | 111 | 90 | 70 | 1 | SBR seal | 1 |
| 401210 | Snap socketWith protection plug | - | 125 | 0,209 | 150 | 126 | 94 | 70 | 1 | SBR seal | 1 |
| 401610 | Snap socketWith protection plug | - | 160 | 0,482 | 190 | 162 | 134 | 105 | 1 | SBR seal | 1 |
| 402010 | Snap socketWith protection plug | - | 200 | 0,859 | 230 | 202 | 155 | 125 | 1 | SBR seal | 1 |
1 SBR seal
