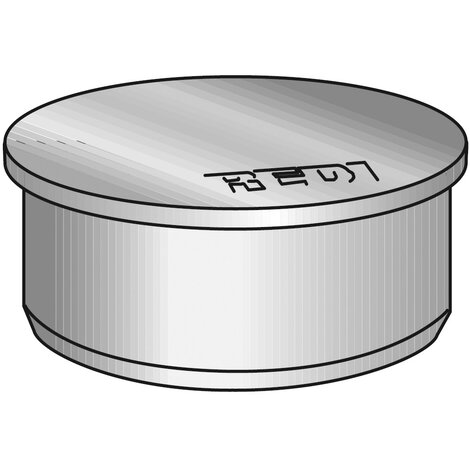

Socket plug M
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

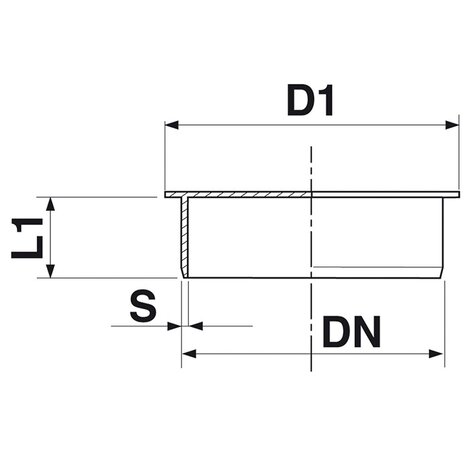

| Reference | tooltipImage | D1 (mm) | S (mm) | L1 (mm) | DN (mm) | DN1 (mm) |
|---|---|---|---|---|---|---|
| 0660402 | - | 45 | 2,5 | 18 | 40 | - |
| 0660502 | - | 55 | 2,5 | 20 | 50 | - |
| 0669902 | - | 45 | 2,5 | 15 | 100 | 104 |
| 0661102 | - | 126 | 3,2 | 38 | 110 | - |
| 0661202 | - | 142 | 3,2 | 42 | 125 | - |
| 0661602 | - | 180 | 4,0 | 49 | 160 | - |
| 0662002 | - | 223 | 4,9 | 59 | 200 | - |
| 0662502 | - | 282 | 6,2 | 90 | 250 | - |
| 0663002 | - | 350 | 7,7 | 93 | 315 | - |
| 06640M2 | - | 440 | 9,8 | 95 | 400 | - |
Downloads
3.8 MB,
PDF
Catalogue REDI
