Balloon Shut off Saddles

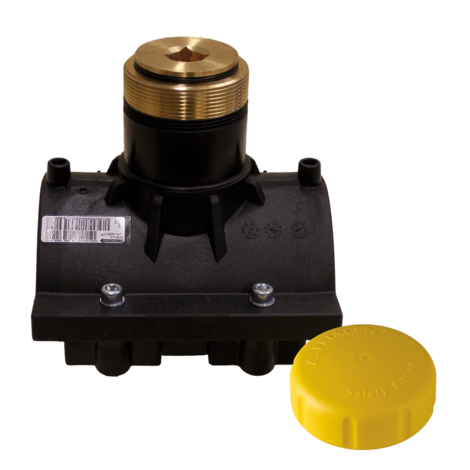

Compact fitting suitable for available balloon shut-off equipment. HD-PE saddle with exposed heating element for optimal heat transfer. Brass-guide thread permanently and immovably anchored in the HD-PE. Cannot be released or rotated. Includes brass plugs with square recess.
Protection against access to the stack by fusing on a FRIALEN SPAK (when using d 63 through cap K order no. 612310).
When using hydrogen, the SPA Balloon Shut off Saddles should only be used in conjunction with sealing cap SPAK (order no. 612311).
Compact fitting suitable for available balloon shut-off equipment. HD-PE saddle with exposed heating element for optimal heat transfer. Brass-guide thread permanently and immovably anchored in the HD-PE. Cannot be released or rotated. Includes brass plugs with square recess.
Protection against access to the stack by fusing on a FRIALEN SPAK (when using d 63 through cap K order no. 612310).
When using hydrogen, the SPA Balloon Shut off Saddles should only be used in conjunction with sealing cap SPAK (order no. 612311).
PE 100 SDR 11
Maximum working pressure 16 bar (water)/10 bar (gas)
| Κωδικός προϊόντος | product.detail.attribute.d1Small | Rp | BX | PU | R | L | t | H | B1 | Drilling Ø da |
Weight kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 612753 | 63 | 1 1/8" | 20 | 360 | 1 1/2" | 80 | 19 | 151 | 108 | 31 | 0,610 |
| 612677 | 90 | 2" | 16 | 128 | 2 1/2" | 104 | 24 | 197 | 156 | 56,5 | 1,390 | |
| 612750 | 110 | 2" | 12 | 96 | 2 1/2" | 104 | 24 | 217 | 178 | 56,5 | 1,480 | |
| 612751 | 125 | 2" | 12 | 96 | 2 1/2" | 104 | 24 | 232 | 190 | 56,5 | 1,690 | |
| 612752 | 160 | 2" | 8 | 64 | 2 1/2" | 104 | 24 | 267 | 230 | 56,5 | 1,830 | |
| 612754 | 180 | 2" | 7 | 56 | 2 1/2" | 104 | 24 | 287 | 235 | 56,5 | 1,830 | |
| 612755 | 200 | 2" | 6 | 48 | 2 1/2" | 104 | 24 | 307 | 252 | 56,5 | 1,910 | |
| 612756 | 225 | 2" | 5 | 40 | 2 1/2" | 104 | 24 | 332 | 258 | 56,5 | 1,920 |
FRIALEN-Shut off Saddles from d 90 can be fused to pipes of SDR stages 11 to 17.6. Minimum wall thickness s min ≥ 3 mm. Other SDR-stages on request. Please observe the marking directly at the product, which is mandatory. DVGW-Registration No.: DV-8601AU2248, DV-8606AU2249
Areas of Application
FRIALEN-Shut off Saddles SPA are suitable for blocking media by the use of commercial shut off equipment or for vending/flushing.
Assembly Instructions
The fusion of the HD-PE mains and the FRIALEN-Shut off Saddle takes place by FRIALEN-fusing – leakproof and longitudinally strong.
The pipe and the saddle have to be prepared according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d225”). This involves removing the oxide skin and cleaning the pipe covered by the saddle.
Good reasons for using the FRIALEN-Shut off Saddles SPA:
Compact construction
HD-PE saddle with exposed heating element for optimal heat transfer
Compact part suitable for normal commercial shut off equipment and for tapping of the mainpipe
Long and solid brass-external thread for a safe connection of the shut off equipment
Brass-internal thread for a safe sealing by using a plug, permanently and immovable anchored in the HD-PE
Includes brass plugs with square recess
Protection against access to the dome by fusing on a FRIALEN SPAK or K
DVGW registered
Additional barcode for tracing back the underground fitting (Traceability-Coding)
