Balloon Shut off Saddles Top-Loading
Suitable for all pipe diameters in the given range by means of the FRIATOP Clamping Unit (see application picture and Product Range FRIATOOLS Ref.-No. 613350).

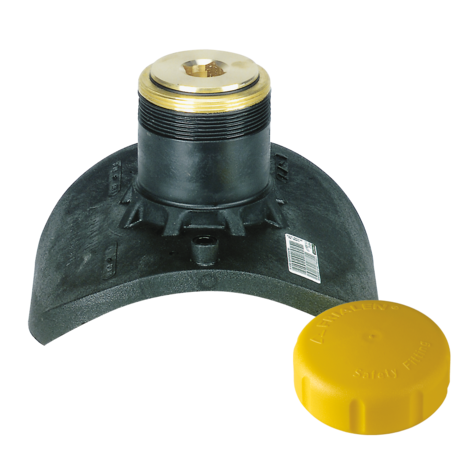

Compact saddle fitting suitable for available balloon shut-off equipment. HD-PE saddle with exposed heating element for optimal heat transfer. Brass guide thread permanently anchored in the HD-PE. Cannot be released or rotated. Includes brass plugs with square recess. Protection against access to the stack by fusing on a FRIALEN SPAK.
Dimension range d 250 – d 560 fusible as standard using the top-loading method. Please note the maximum permissible wall thickness for tapping in the dimension range > d 315 - d 560.
If required, please contact the manufacturer of the tapping equipment.
Please note manufacturer's instructions.
Suitable for all pipe diameters in the given range by means of the FRIATOP Clamping Unit (see application picture and Product Range FRIATOOLS Ref.-No. 613350).
Compact saddle fitting suitable for available balloon shut-off equipment. HD-PE saddle with exposed heating element for optimal heat transfer. Brass guide thread permanently anchored in the HD-PE. Cannot be released or rotated. Includes brass plugs with square recess. Protection against access to the stack by fusing on a FRIALEN SPAK.
Dimension range d 250 – d 560 fusible as standard using the top-loading method. Please note the maximum permissible wall thickness for tapping in the dimension range > d 315 - d 560.
If required, please contact the manufacturer of the tapping equipment.
Please note manufacturer's instructions.
PE 100 SDR 11
Maximum working pressure 16 bar (water)/10 bar (gas)
| Κωδικός προϊόντος | product.detail.attribute.d1Small | Rp | BX | PU | R | L | t | B | SW | Drilling Ø da |
Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 615395 | 250-355 (560) | 2" | 18 | 144 | 2 1/2" | 115 | 24 | 200 | 19 | 56,5 | 1,360 |
FRIALEN-Safety Fittings can be fused to pipes of SDR stages 11 to 17.6. Other SDR-stages on request. Please observe the marking directly at the product, which is mandatory. DVGW-Registration No.: DV-8611AU2250
1) d1 up to d 560. Please refer to the instructions of the manufacturer of the balloon.
Areas of Application
FRIALEN-Shut off Saddle SPA-TL is suitable for normal commercial shut off equipment.
Assembly Instructions
The saddle is clamped onto the pipe with the FRIATOP clamping device (see pricelist “Technical Equipment”). Please read the “Assembly and Operating Instructions for FRIATOP clamping unit (Top-Loading)”.
The fusion of the HD-PE mains and the FRIALEN-Shut off Saddle Top-Loading takes place by FRIALEN-fusing – leakproof and longitudinally strong.
The pipe and the saddle have to be prepared according to the general installation instructions (see Assembly Instructions for “FRIALEN-Large Pipe Technique for laying large pipes and relining pipe networks”). This involves removing the oxide skin and cleaning the pipe covered by the saddle.
Good reasons for using the FRIALEN-Shut off Saddle SPA-TL:
Compact construction
HD-PE saddle with exposed heating element for optimal heat transfer
Compact part suitable for normal commercial shut off equipment for tapping through the saddle
Brass-guide thread permanently and immovable anchored in the HD-PE
Includes brass plug with square recess

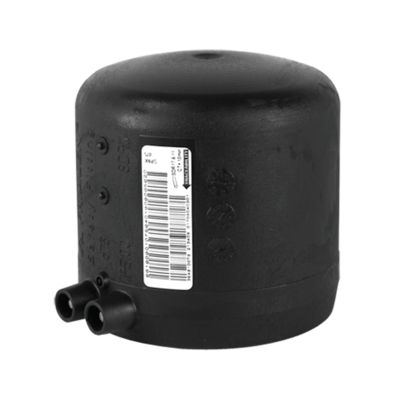

Protection against access to the dome by fusing on a FRIALEN SPAK
The SPA-TL can be applied universally to large HD-PE pipe diameters d 250-315 (560). This means additional economy due to less material needed and less stock both with suppliers and trade
Additional barcode for tracing back the underground fitting (Traceability-Coding).
