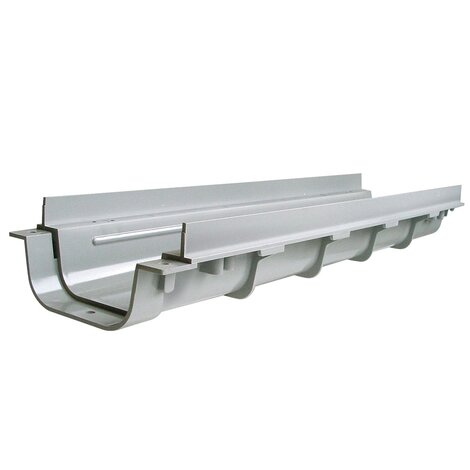

130 Low modular channel
SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS
Linear evacuation by superficial drainage channels with grills.
These channels can be placed in flat open areas without digging limitations. To use in garages, yards, terraces, balconies, multistoreyed parkings, and in all cases of low concrete slab.
Material: PVC.
Marking: CE.
Features:
-modular joint by pins
- preset for cover screw fastening
- possibility to glue the components to ensure water tightness.
N.B. Use solvent cement for PVC to weld the channels (Reference COLLA00 - COLLA25 - COLLA12).

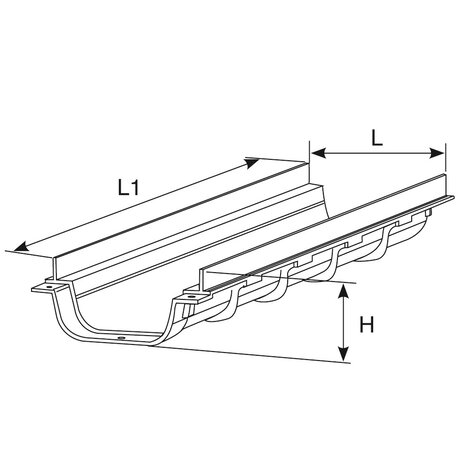

| Reference | tooltipImage | RAL | H (mm) | L (mm) | L1 (mm) | Material |
|---|---|---|---|---|---|---|
| E1813B4 | - | 7035 | 70 | 130 | 500 | PVC |
Downloads
1.9 MB,
PDF
get_app

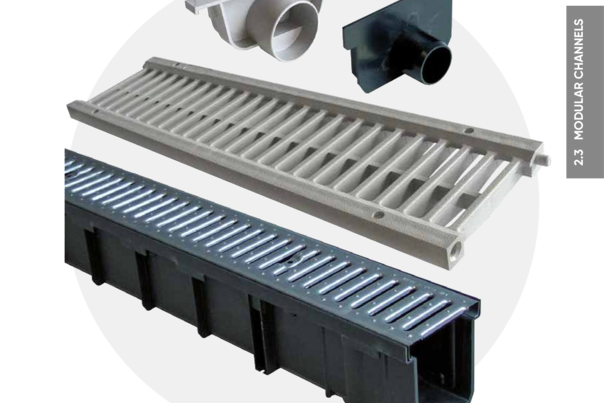

REDI Export Catalogue
