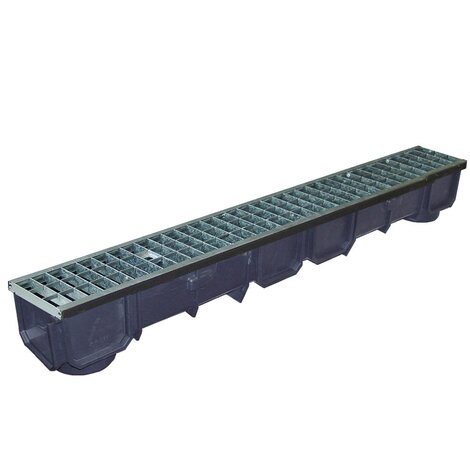

130x1000 PP Channel H90 with T section grill

SURFACE DRAINAGE SYSTEMS, MODULAR DRAINAGE CHANNELS

Linear evacuation by superficial drainage channels with grills.
These channels can be placed in flat open areas without digging limitations. To use in pedestrian areas and light traffic areas.
Tested by Istituto di Ricerche e Collaudi M. Masini S.R.L.
Marking: CE
Material: PP

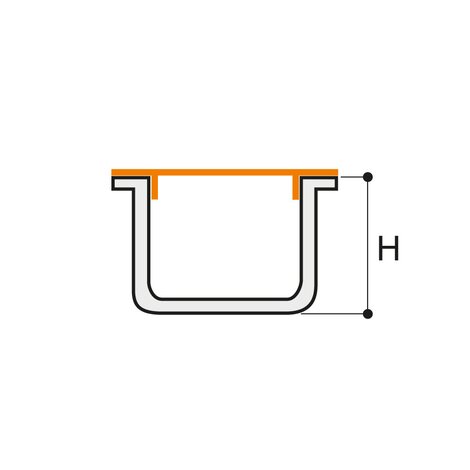

Shaped profile T
2 x vertical outlet predisposition Ø110

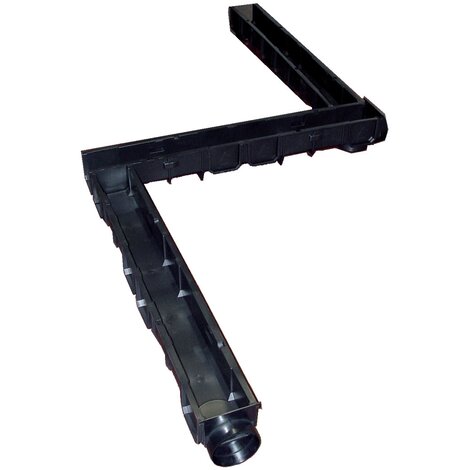

Channel can be cut in 2 channels 130x500
Grate locking device NOT applicable

Grating: class A15 EN1433.
Use rain water drainage in pedestrian areas and light traffic areas.

note : Class B125 EN1433
Go back Data sheet
Reference tooltipImage Colour H (mm) Dim (mm) Type Material Grill Lock system
WCA13PP - Black 90 130x1000 A15 EN1433 PP Galvanized steel Ad incastro / Interlock
