Adaptor for socket welding - equal socket.

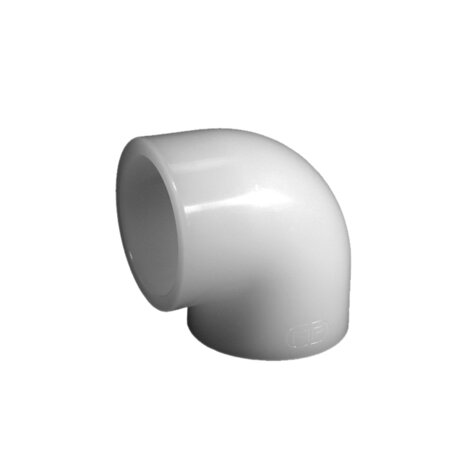

90° elbow for socket welding.
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Reference | tooltipImage | system | Category | family | d | PN | E | H | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|
| GIF016 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 16 | 16 | 22 | 23 | 10 | 14 |
| GIF020 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 20 | 16 | 28 | 27 | 13 | 28 |
| GIF025 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 25 | 16 | 33 | 32 | 16 | 43 |
| GIF032 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 32 | 16 | 41 | 37 | 19 | 65 |
| GIF040 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 40 | 16 | 52 | 43 | 23 | 125 |
| GIF050 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 50 | 16 | 63 | 51 | 27 | 195 |
| GIF063 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 63 | 16 | 77 | 61 | 34 | 340 |
| GIF075 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 75 | 16 | 92 | 73 | 42 | 575 |
| GIF090 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 90 | 16 | 110 | 83 | 47 | 850 |
| GIF110 | - | PVDF system | Pressure Fittings | ISO-UNI Fittings | 110 | 16 | 133 | 99 | 58 | 1470 |
