NRIV
Adaptor fittings.

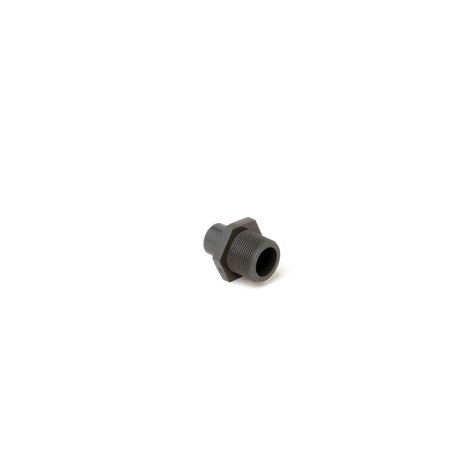

Barrel nipple with reduced solvent weld spigot d and BSP threaded male end R.
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.

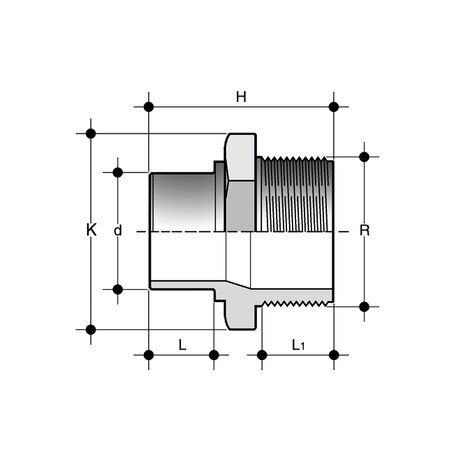

| Reference | system | Category | family | d x R | PN | E | H | K | L1 | g |
|---|---|---|---|---|---|---|---|---|---|---|
| NRIV025100 | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 25 x 1" | 16 | 53 | 60 | 46 | 26 | 43 |
| NRIV032114 | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 32 x 1"1/4 | 16 | 63 | 66 | 55 | 28 | 70 |
